Wheels/Brakes

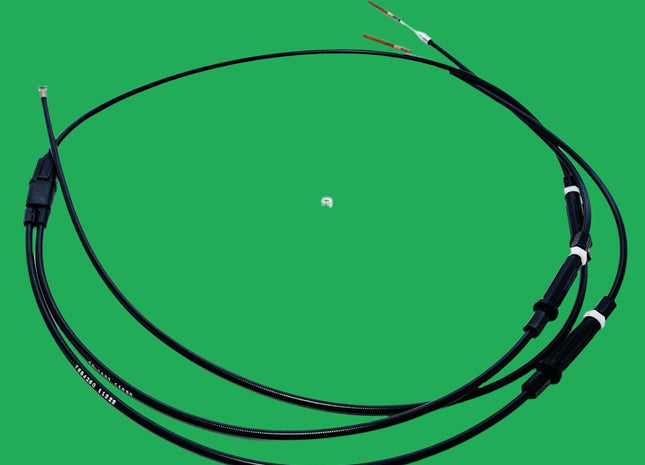

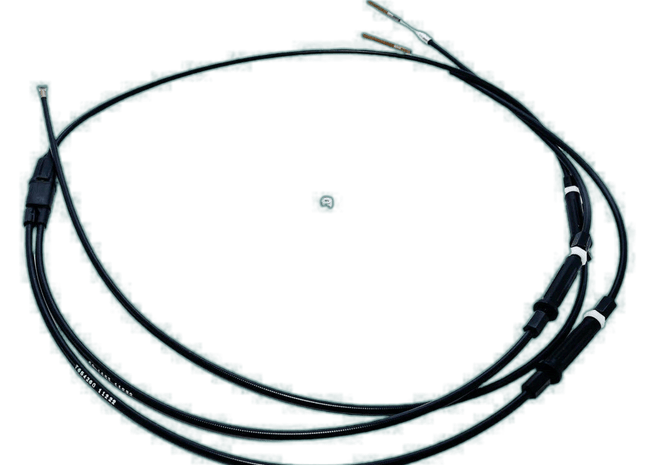

Sulky/Rear Brake Cable (Triumph)
(all Triumph models) This is the sulky/rear brake cable for the Triumph. It connects to the rear brake lever on the left handlebar, then splits into two cables at the front of the sulky that connect with each of the two rear brake bands.

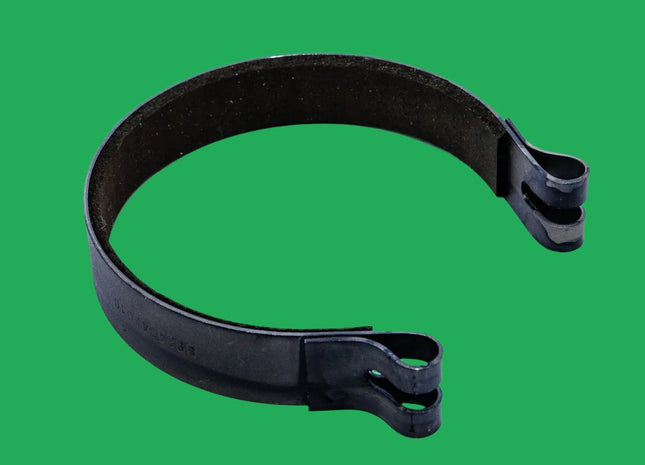

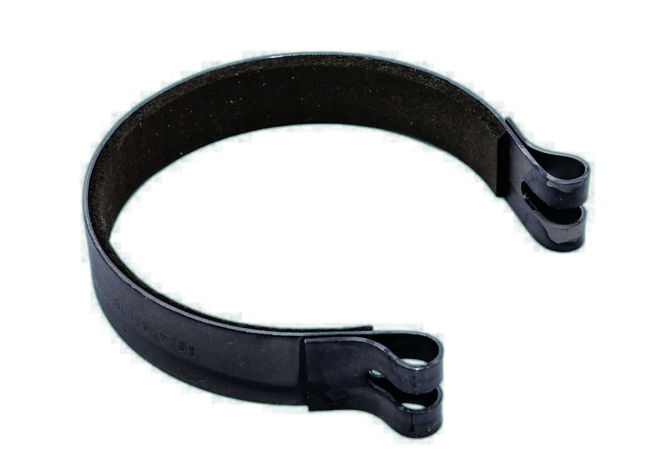

Brake Band (Single)
(all Triumph models) (all Magnum models) Located on rear hubs on the Magnum models, as well as the rear hubs, trans brake drum, and front hubs (5 total) on the Triumph model.

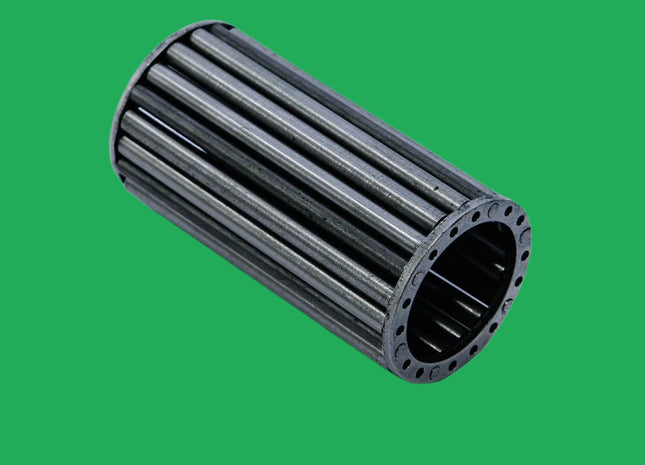

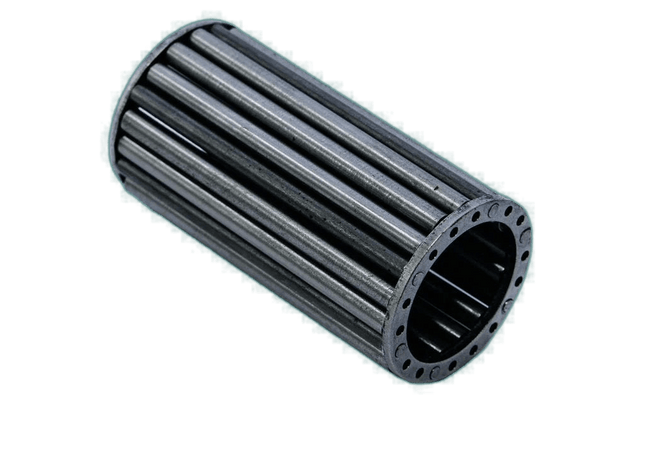

Roller Bearing, Rear Triumph 1"
(fits 2012- present Triumph Sulky Hubs) This part is inside of the rear hub assembly on sulkies with 1" sulkies. Part is inside of T654750-1" Hub drum Assembly and T654670-Small 1"Hub Tire Kit. Please note when ordering this part (2) T654750.02-1" Retainer should also be ordered per Roller bearing that is ordered. Retainers hold the roller bearing in place in hub.

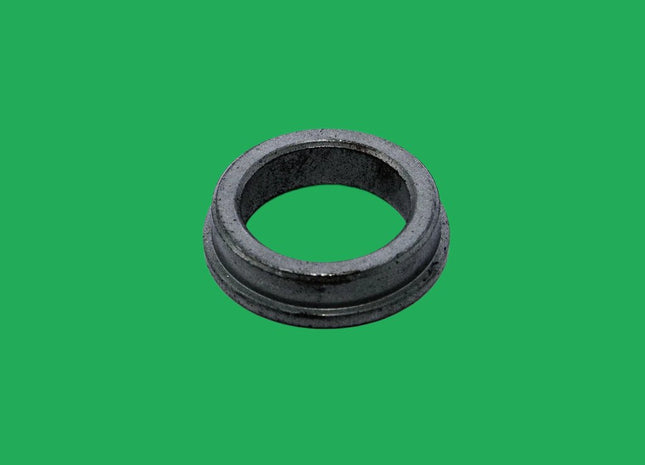

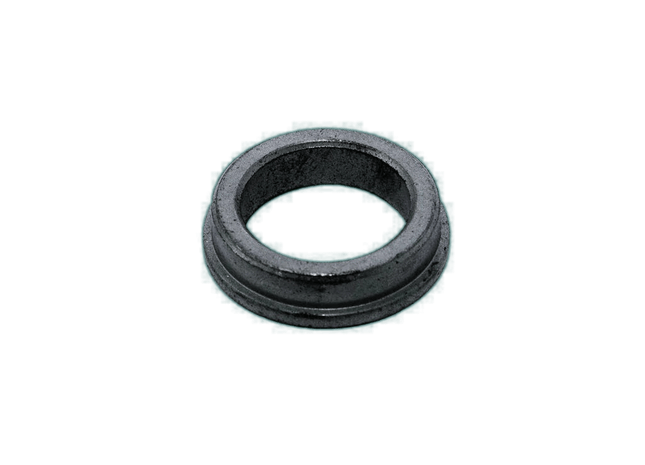

Retainer, Roller Bearing Retainer Rear Triumph 1"
(fits 2012- present Triumph Sulky Hubs) This part is inside of the rear hub assembly on sulkies with 1" sulkies. Part is inside of T654750-1" Hub drum Assembly and T654670-Small 1"Hub Tire Kit. Please note when ordering this part must order (2) of the retainers must be ordered per (1) T654750.01-1" Roller bearing, Rear Triumph 1". This part holds the roller bearings in place on the hub.

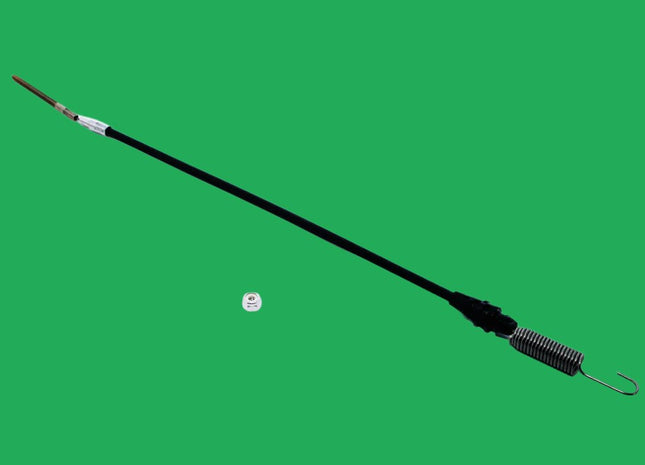

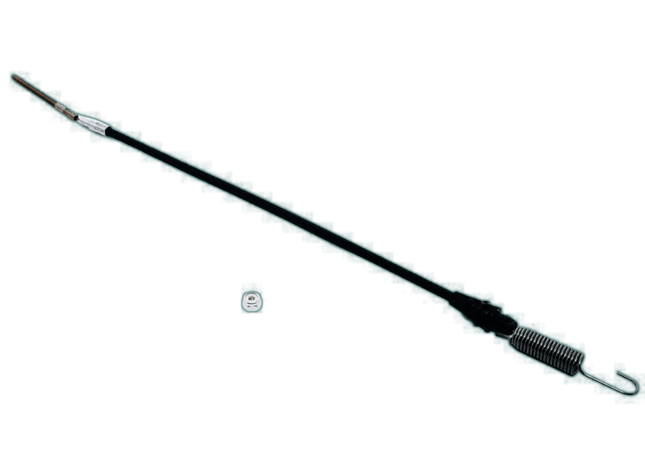

Front Brake Cable #2 (of 2) (all Triumph models)
Front Brake Cable #2 terminates at the front brake band and is the lower section of the front brake system. (NOTE: Both #1 and #2 are needed to perform complete front brake replacement).

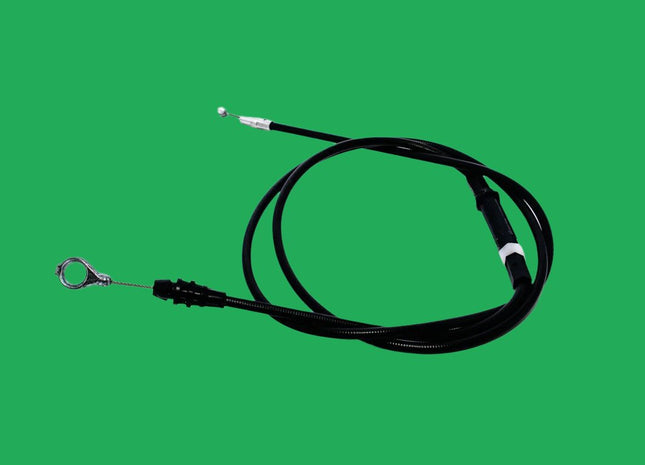

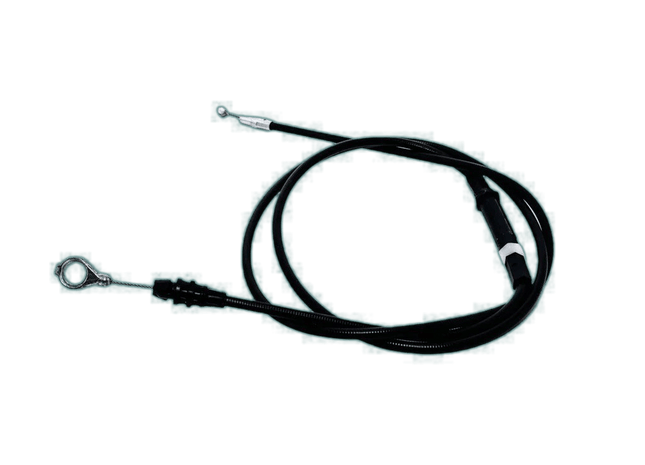

Front Brake Cable #1 (of 2) (all Triumph models)
(fits all Triumph models) Front brake cable #1 (of 2) starts at the front brake lever and connects to Front Brake Cable #2 down near the spinner gear box. Front Brake Cable #2 connects to front brake band. (Both cables are needed to complete front brake cable replacement).

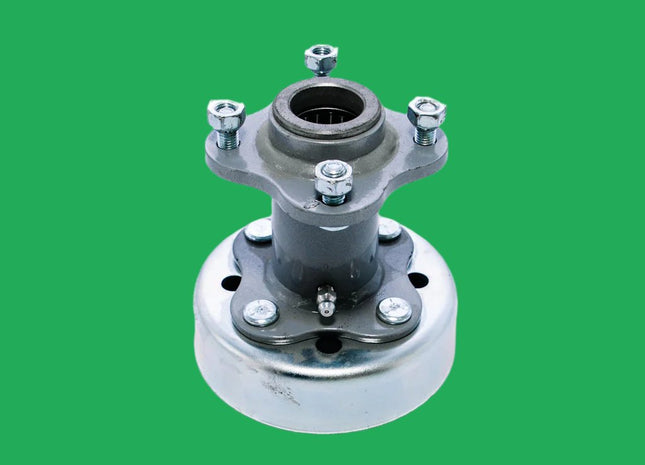

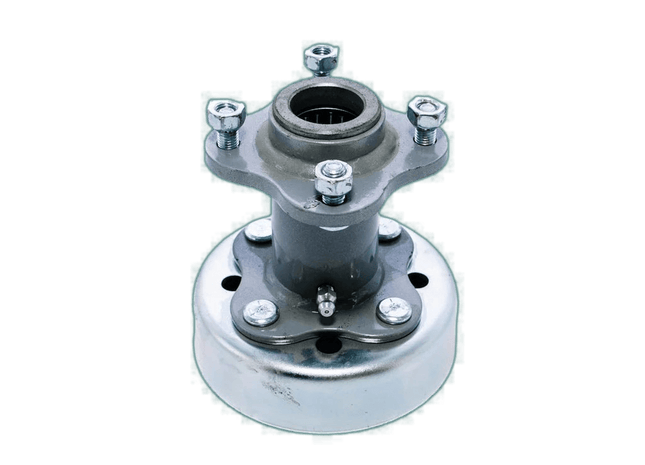

Rear Tire Hub w/ Bearing Triumph 1"
(fits 2012- present Triumph Sulky Hubs) This part is inside of the rear hub assembly on sulkies with 1" sulkies. This part is part of the T654675-Rear Tire, rim and hub kit. Hub also included T654750.01-1' Roller bearing & T654750.02-1" retainer. This hub has the drum attached to brake the rear sulky. Note 2 qty T654750.02-1" retainers hold 1 qty T654750.02 in this hub. Other parts that maybe needed if ordering this part: Parts used to attached tire/Hub to sulky: 1 qty T651605-3/16-1-1/4 Cotter Pin 4 qty P651510-Washer, 1" x 18 ga .048 **Note this is per side. Example if you need both left and right side 2-T651605 and 8-P651512 must be ordered. Braking System for Sulky: 1 qty T654040-Sulky Cable 2 qty R422055-Brake Band 2 qty R651206-Lock Nut, 10-24 2 qty R651450-Fender Washer, 3/16x3/4 4 qty T651733-B-Brakepin-Sheath 2 qty T101700-Brake Holder 2 qty T654525 Brake Band Tension Spring

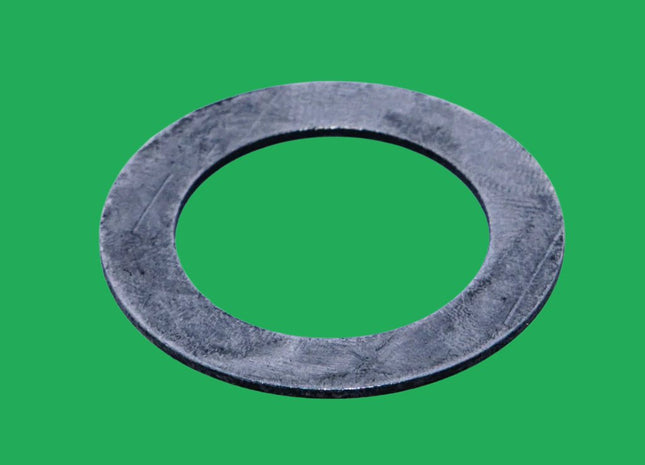

Washer, 1" x 18 ga .048
(fits all Triumph and Magnum models) Used on rear sulky axle of Triumph and front axle of Magnum

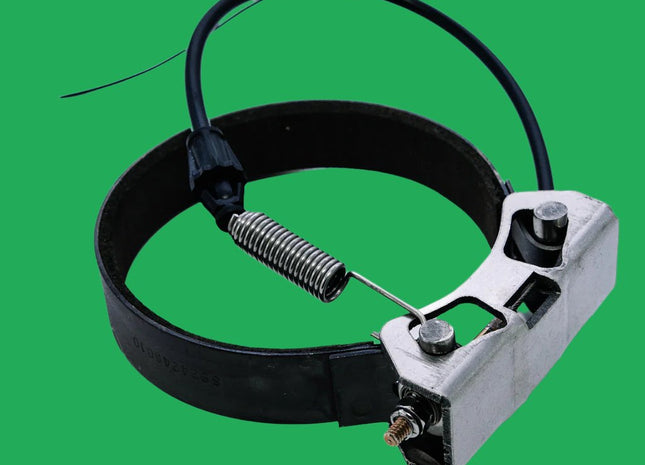

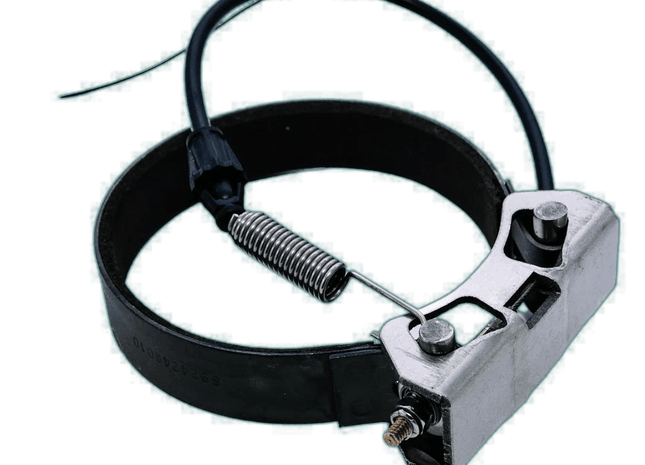

Front Brake Cable #2 (of 2) Assembly (Triumph)
(fits all Triumph models) This is the Front Brake Cable #2 (of 2) Assembly for the Triumph. You will receive the Front Brake Cable #2, Brake Holder, Brake Pins, and Brake Band. This assembly is located underneath the green hood and will help apply braking pressure to the transaxle.
Smart Steer Cable
(fits all Triumph models) Attaches just under handle bar and connects to front smart steer hub band.

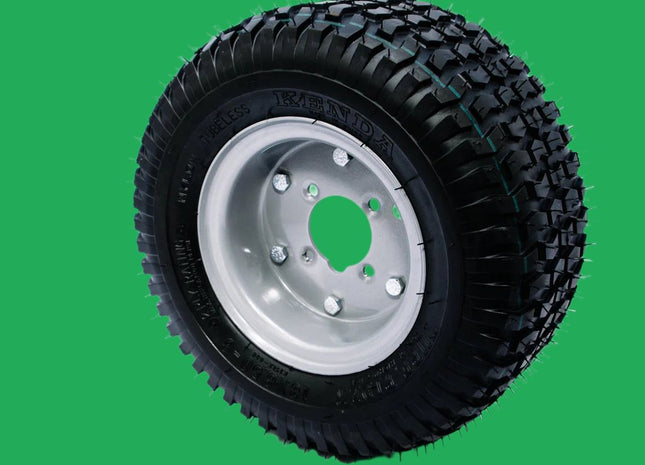

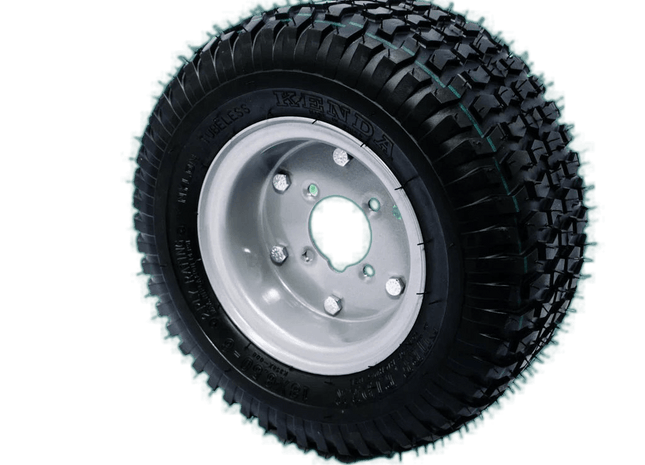

Small Tire & Rim Assembly
Tire and rim only (rear)

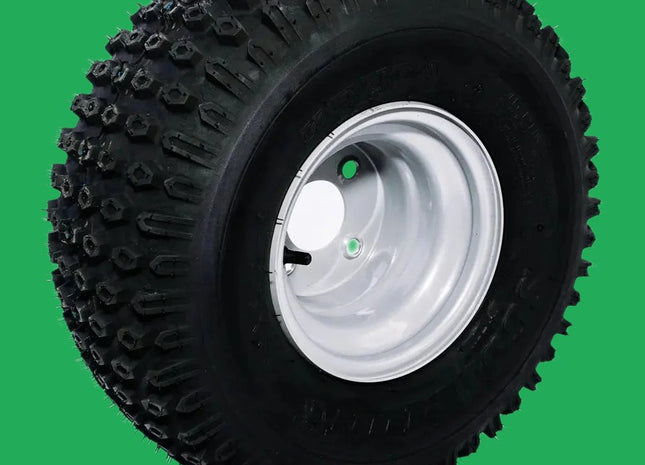

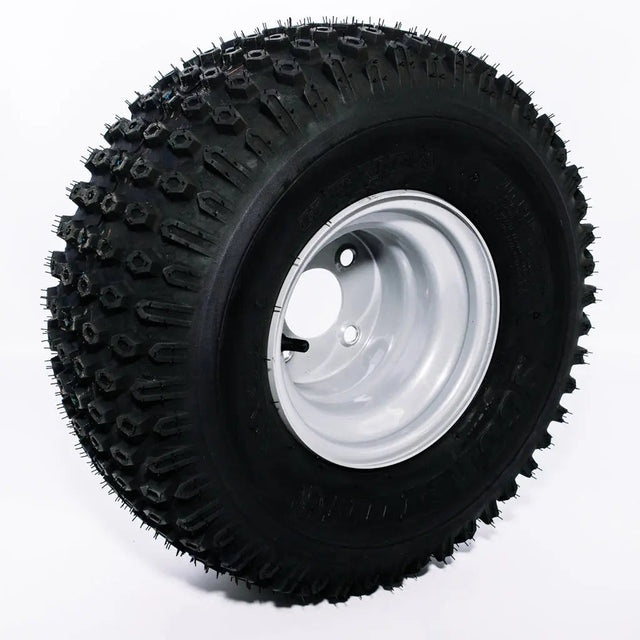

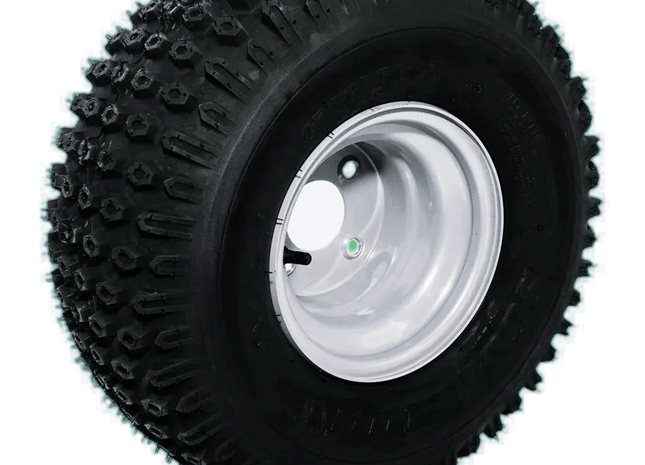

Tire, Front and Rim Triumph/Magnum
(all Magnum Models) (Triumph models) This tire and rim is filled with RV antifreeze mix to counterbalance machine.
