Hardware

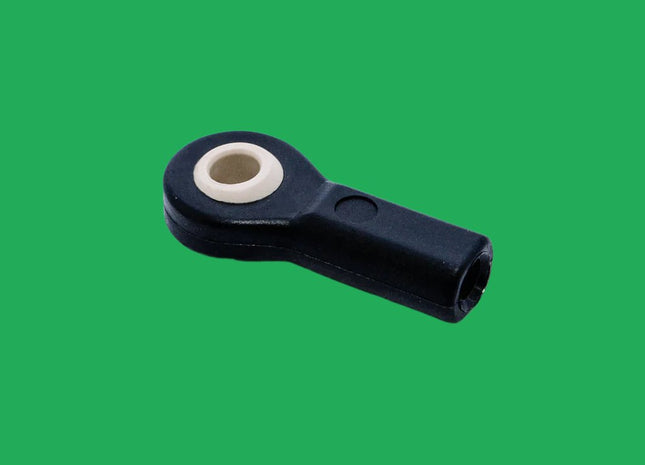

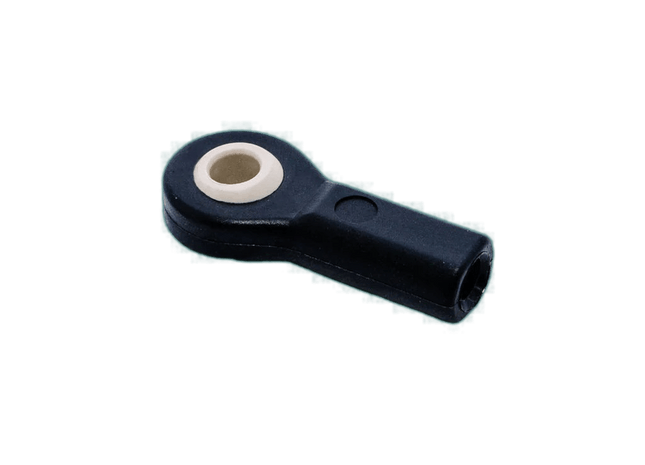

Shift Cable Rod End (Triumph)
(fits All Triumph) This part is on Part#T654030-Shift Cable Assembly. Rod end is screwed onto end of shift cable to allow attach to shift arm and lever to shift machine into gear.

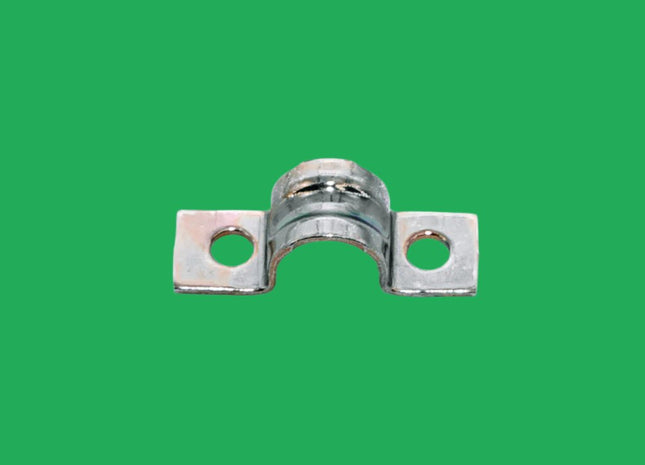

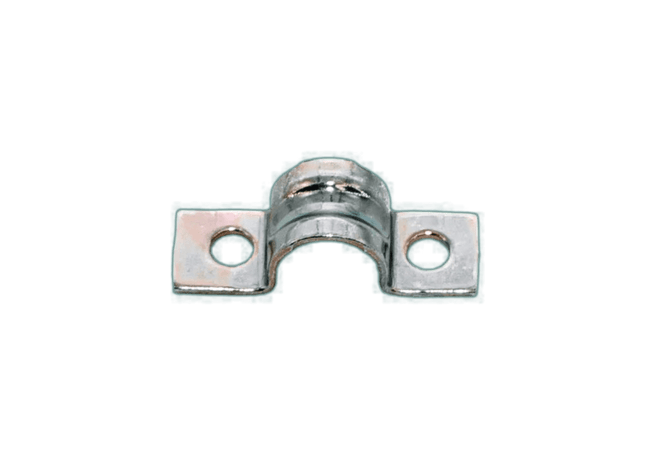

Shift Cable Clamp
(all Triumph models) The Cable Clamp for the Shift Cable is used on all Triumph models. It is located near the bottom of the shift cable before it connects with the shift arm on the transaxle. It helps keep the shift cable secure while shifting and is bolted onto the frame.

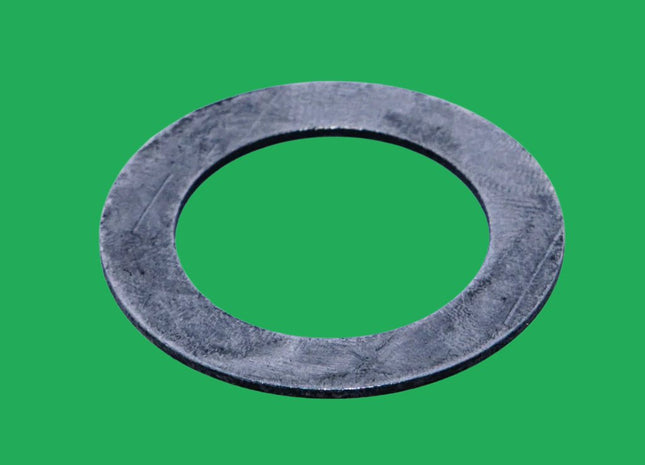

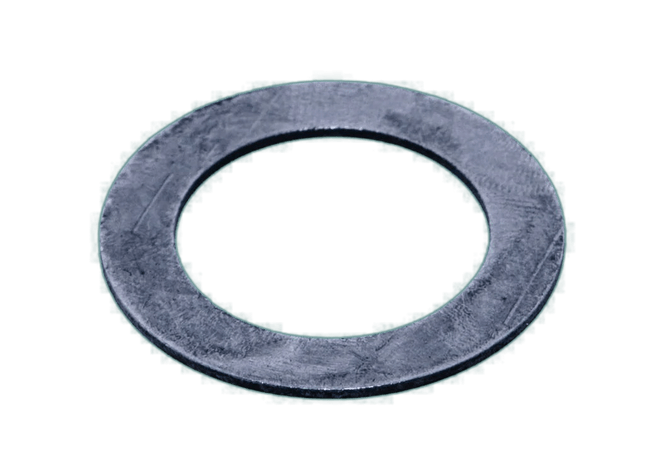

Washer, 1" x 18 ga .048
(fits all Triumph and Magnum models) Used on rear sulky axle of Triumph and front axle of Magnum

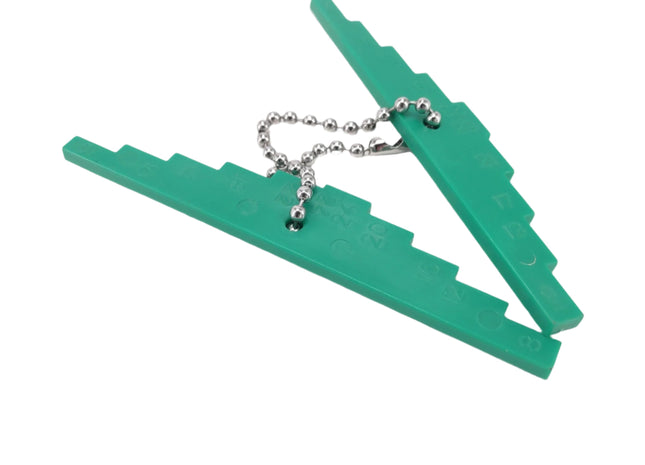

Calibrating Gauge
(fits all Triumph models) (fits all Magnum models) The Calibrating Gauge is the green staggered Lesco gauge keys with gauge increments 8 through 24. These can be used on both the Magnum and Triumph models to set an accurate spread rate.

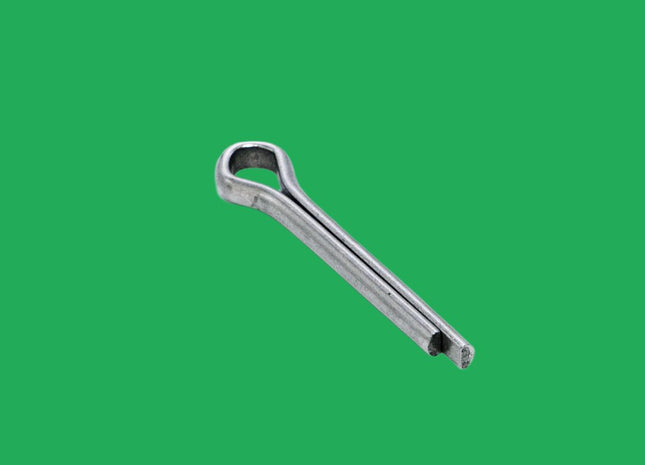

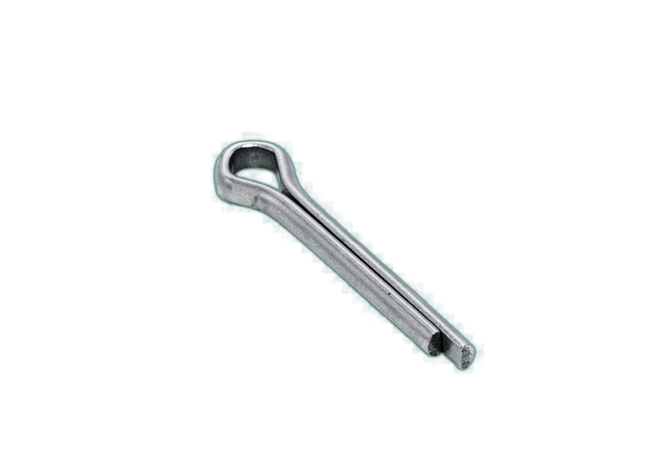

Pin, Cotter 3/16-1-1/4
(all Triumph models) This part is located on the rear of machine on sulky axles. This cotter pin is assembled thru hole in both axles to hold tires on sulky.

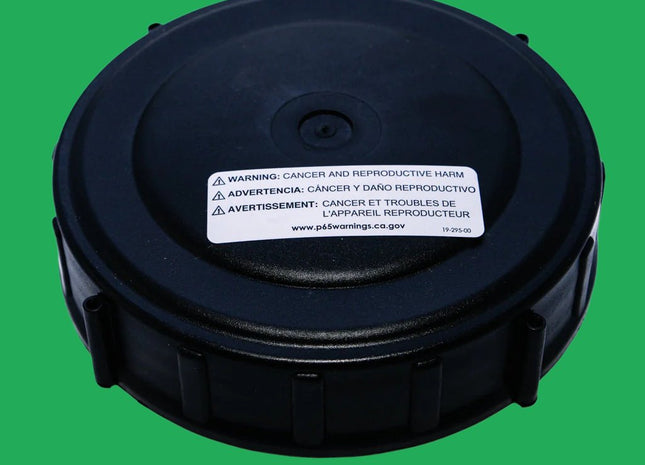

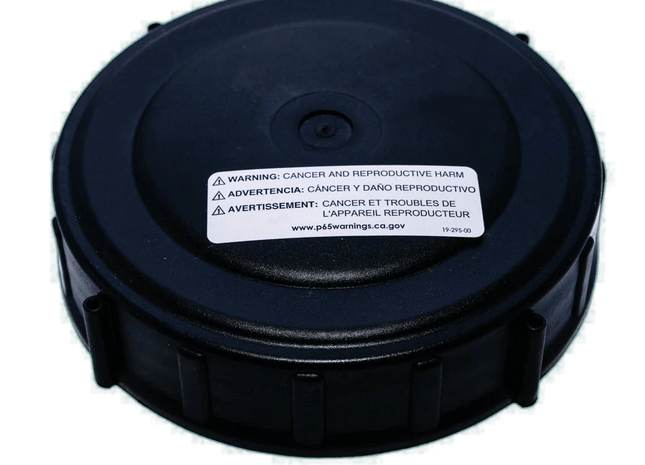

Tank Lid
(fits all Triumph models) (2) are used per machines.

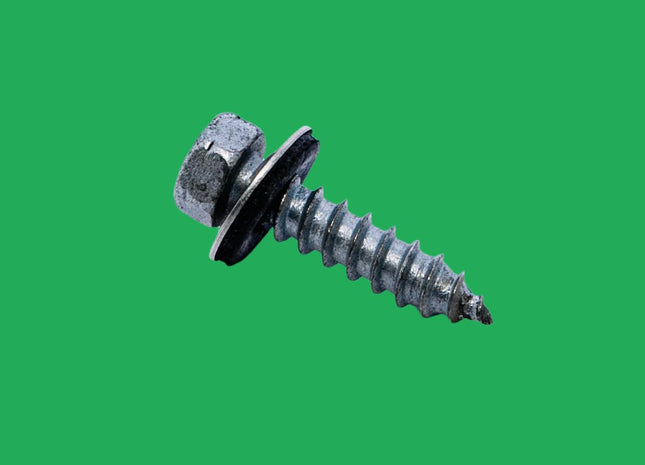

Screw, 1" w/Sealing Washer
(fits all Magnum models) Screws w/Sealing Washer is used to fasten down the green hood pieces on the Magnum

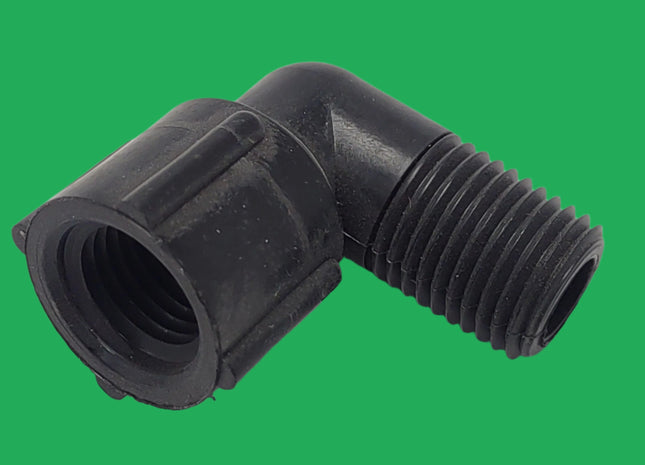

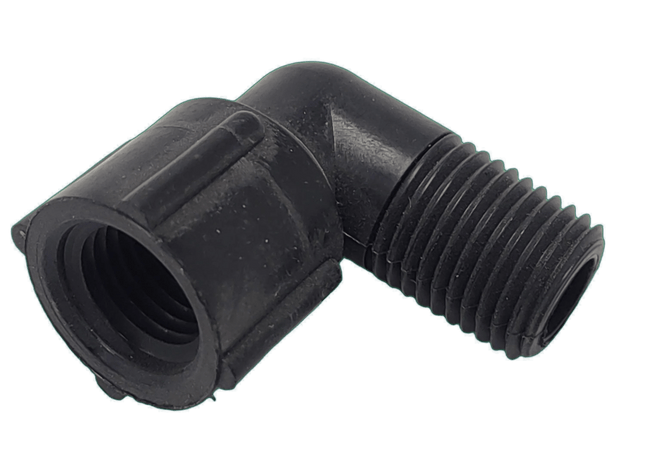

PP- 1/4mpt elbow 1/4fpt street L
(fits Triumph serial # 17000 - Present) This part is a part of the Suction Strainer part of the plumbing system. The female end of the elbow is assembled on the strainer assembly. The male end of the elbow is assembled to a 1/4" pipe nipple. Then, the nipple is assembled to the ball valve with yellow lever.

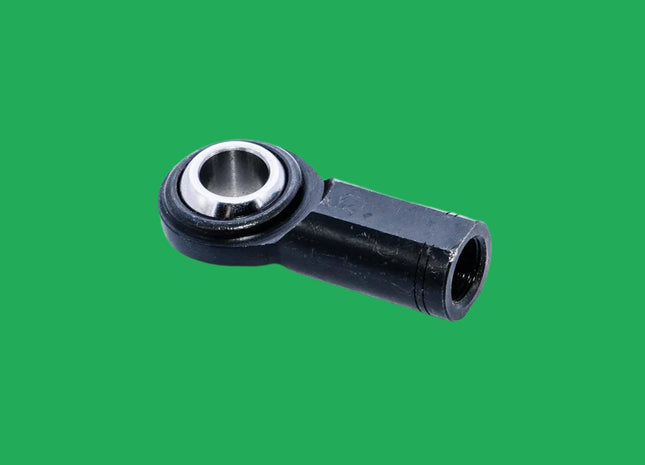

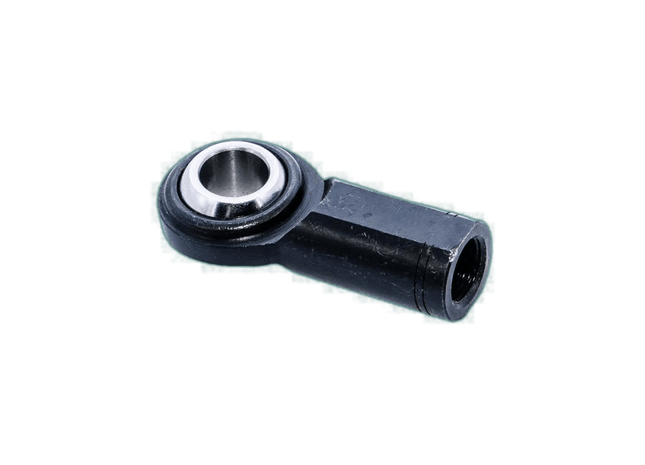

Rod End, Hardened Female
(all Triumph models) (all Magnum models) This part is located between the sulky and frame. On triumph this part is attached to a male rod end (T652663) is a part of the articulation of the sulky. This part is a hardened rod end. Replaces old part #R652462.
