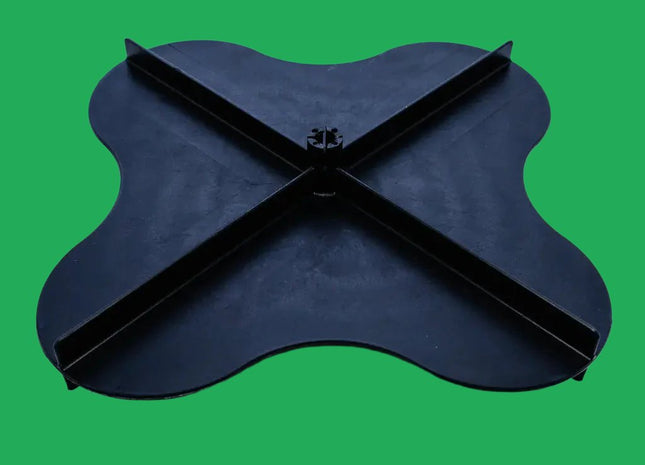

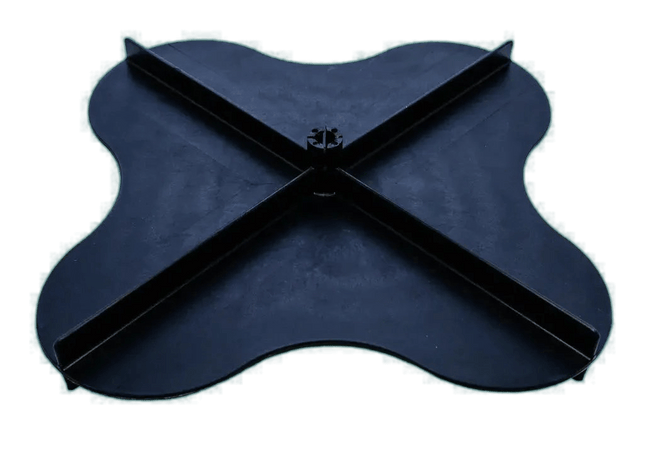

Spinner Platter (Triumph all models)
The Dual-Sided Impeller/Platter is used to spread the granule material as it is being dropped from the bottom of the hopper. This item is used on the Triumph models.

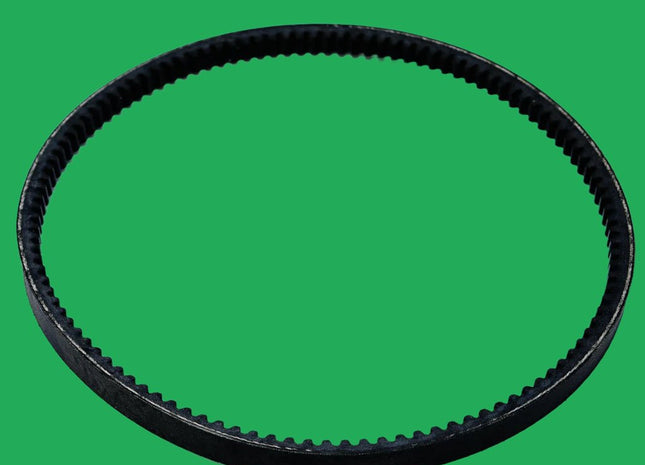

Spinner Belt (Triumph)
(all Triumph models) Spinner Belt for the Triumph. Goes around the spinner gearbox pulley, pump pulley, and gearbox pulley.

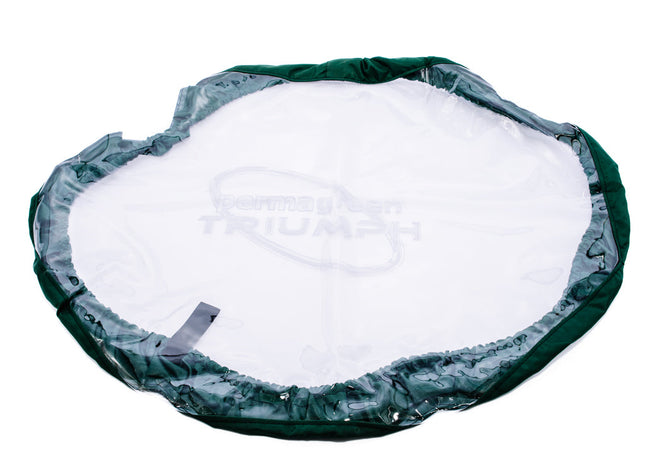

Hopper Cover (All Triumph models)
(fits all Triumph models) Hopper Cover goes over the hopper of all Triumph models. This cover helps to keep granular material in the hopper while in operation.

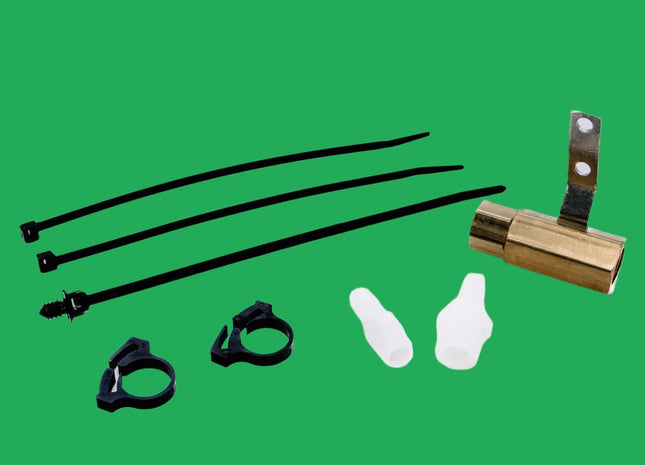

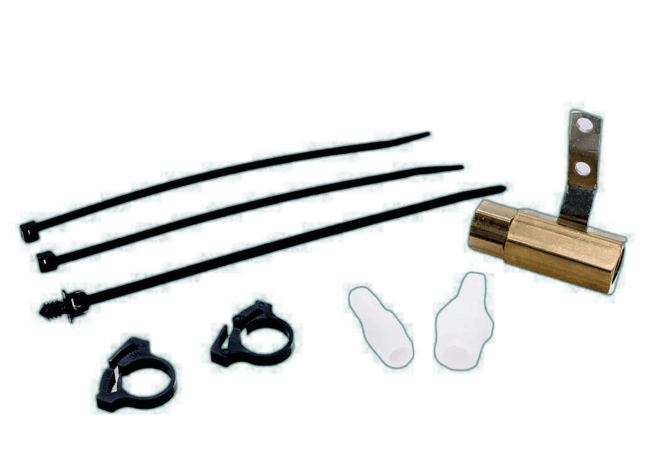

Spray Valve Kit Triumph
(fits all Triumph models) This kit is used on all triumphs. Kit includes the following parts: 1) P205010-Spray Valve 2) R452222-Fitting, 1/4 mpt x 3/8 Hose 3) T454245-3/8 mpt x 3/8 hose barb 4) R347042-Wire Tire, Stud 5) R347041-Wire Tire 8 BUV (2) 6) R4841243-Hose Clamp #38 (2) 7) P205020-Spring 3" (not shown in picture) This kit is used to replace spray valve. Kit includes hose fittings, wire tires and hose clamps to completely change out spray valve.

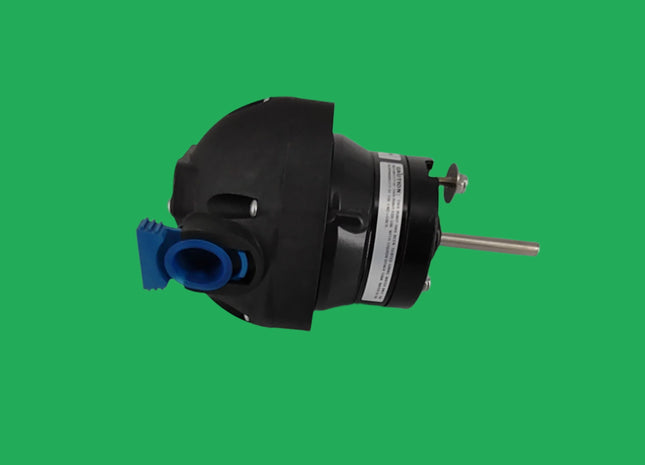

Pump Assembly
(fits all Triumph models) This pump is used on all Triumphs. Assembly comes with the following parts: 1 qty Pump 2 qty R651206-10x24 lock nut 1 qty R651450-3/16 Fender washer The following parts could be order along with this part: P442065-Elbow Fitting (This is the elbow that is the connecting part to the pump in plumbing assemblies) P442059-Blue Retaining Clip (This part is the clip that pushes holds the elbow fitting onto the pump. Locks Elbow in place.)

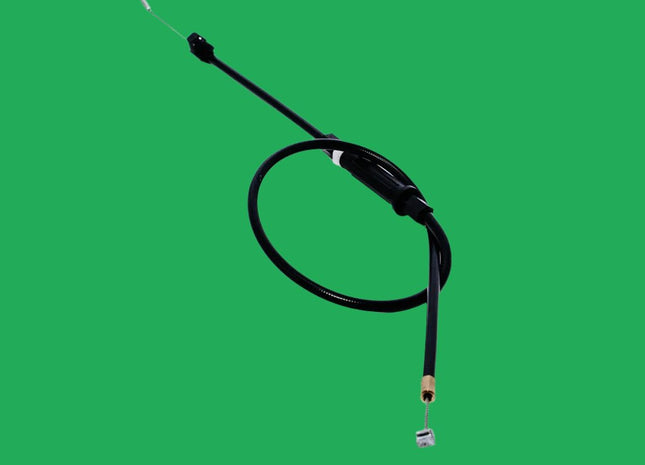

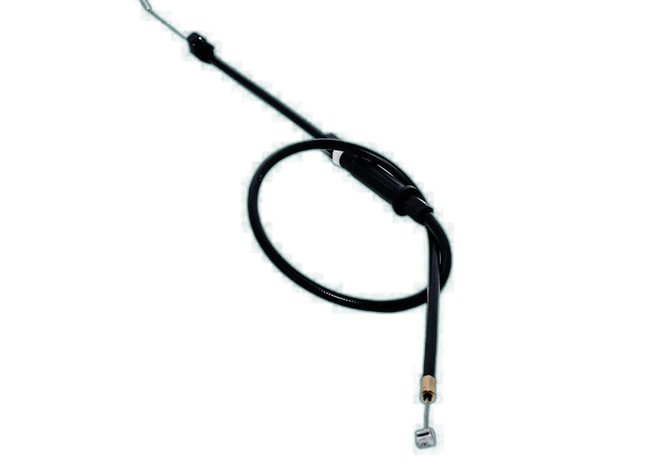

Spray Cable (Triumph)
(all Triumph models) This is the spray cable for the Triumph. It connects to the spray lever on the left handlebar and the main spray valve located under the top green panel.

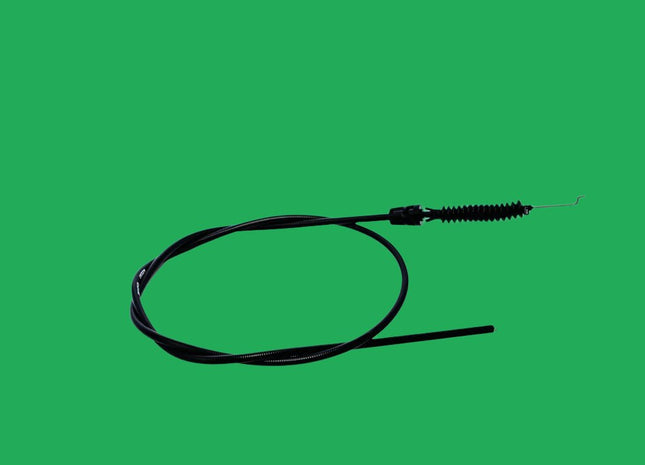

Deflector Cable (Triumph all models)
The deflector cable controls the deflector used on border passes for all Triumph models.

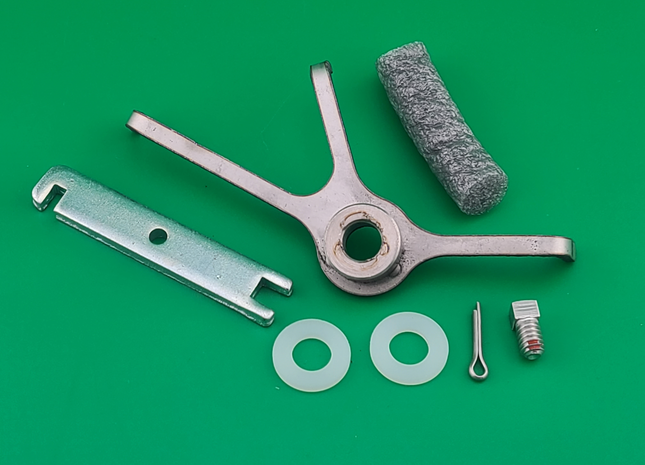

PermaGreen® Agitator Kit
This universal agitator fits all PermaGreen® machines and Lesco push spreaders. The patented PermaGreen® Agitator Kit is great for preventing clogging in the hopper holes while spreading fertilizer, seed, rock salt, or any other product used in the Triumph. Also, provides a consistent, full spread for better accuracy and results.

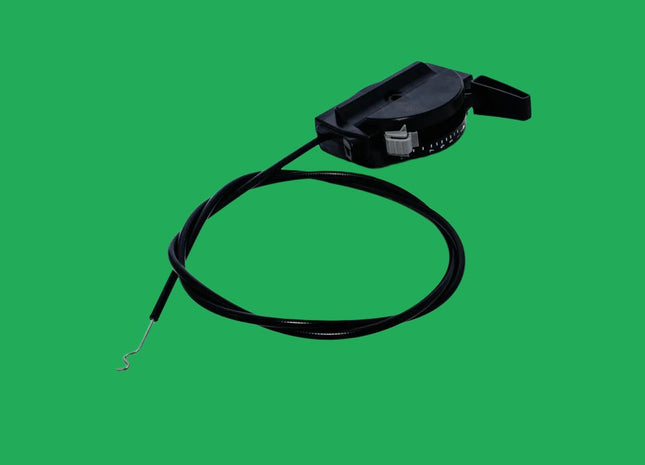

3rd Hole Cable w/ Plastic Lever Triumph
(all Triumph models) This controls 3rd hole slide plate on all Triumph models and includes plastic lever, black plastic cable/lever housing, gray rate adjuster and cable. Metal lever version is available as part number T654056 which is an upgraded version.

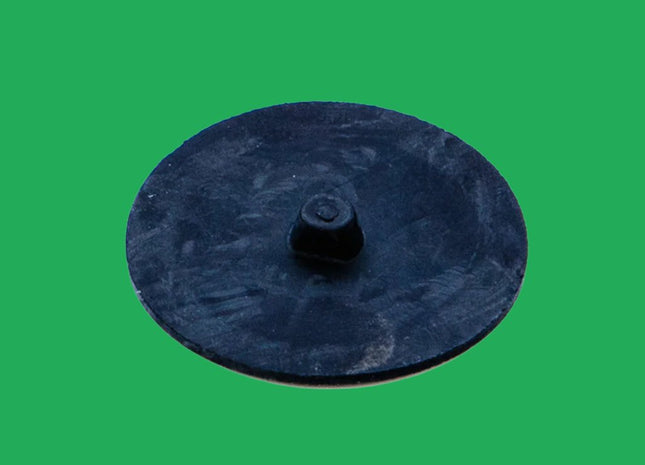

Diaphragm, Standard (Triumph all models)
(all Triumph models) The diaphragm is used on all PermaGreen® models. The diaphragm is a rubber disk located underneath the 8 psi cap on the nozzle body and the 20 psi and 30 psi pressure caps on the unloader valves. There are five total on every PermaGreen®. Always a good practice to have a few extra on hand.

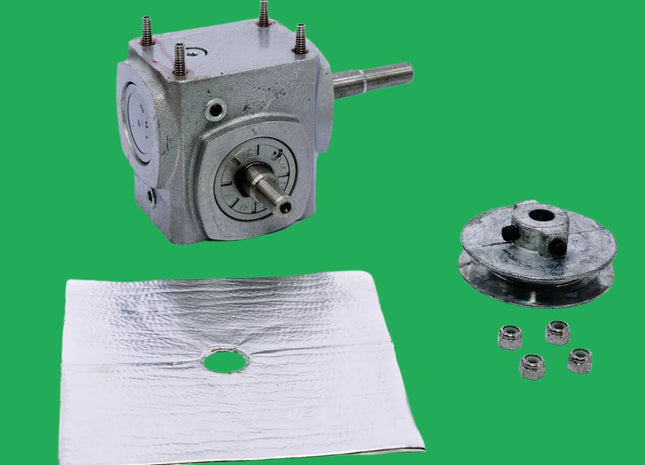

Spinner Gearbox w/ Pulley (Triumph)
(fits all Triumph models) This is the gearbox that is used on all Triumphs. This part engages the spinner shaft and impeller to spread granular product. This gearbox kit comes with the parts show below: 1 qty gearbox 1 qty T653710-3"OD 1/2 bore w/2 set screws 4 qty R651206-Lock Nut 1/4-20 1 qty T210165-Gearbox Heat Shield 6" 4 qty P650105-Set Screw 1/4-20 x 1 ss
3rd Hopper Hole Assembly Cable w/ Metal Lever (Triumph)
(all Triumph models) This 3rd hopper hole cable assembly for the PermaGreen® Triumph will include a metal lever for greater durability, lever housing, gray plastic rate adjuster, and cable. This is available for all Triumph models. The following part number are used in the upgrade: 1 qty T654325-Plain Grip 1 qty T101504-3rd hole Cable Lever 4 qty P651230-5/8 Nylon Washer 1 qty T654220-3rd Hole Cable with plastic lever

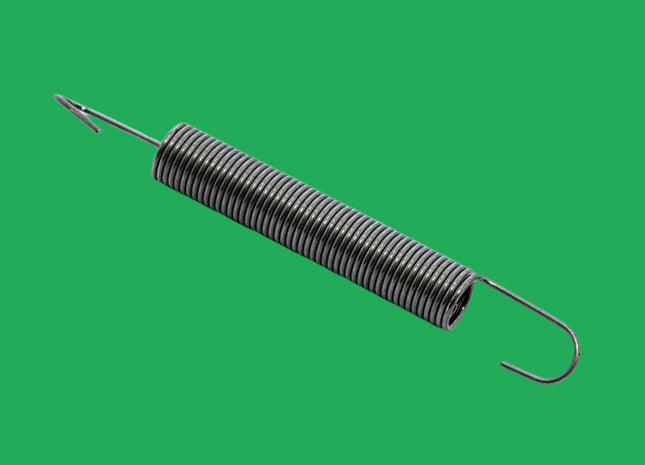

Triumph 3" Spring (Spray Valve, Deflector, Throttle)
(fits all Triumph models) 3" Spray Valve Spring is used to help close the main spray valve on the Triumph. Also used on deflector.
Tank Lid Gasket
(fits all Triumph models) The Tank Lid Gasket is used on the Triumph model and is located on the inside of the spray lid that is used to cover the liquid tanks.
Spinner Gearbox Hood Bearing (Triumph)
This bearing goes over the shaft coming up from the Triumph Spinner Gearbox that comes up through hole in the middle of the green plastic hood piece.
Knob, Fert Rate Kit
(all Triumph models) This knob upgrade kit had a new and improved know that can be locked in place by a nylon locknut. This kit includes the following parts: 1 qty T422937 New, Knob Fert Rate 1 qty T645945 1/4-20 Zinc Locknut 1 qty T645940 1/4-20x1-1/4 Zinc Carriage Bolt Instructions for this kit, give illustrations of how to install new knob.
Strainer, Triumph External Assembly
(fits Triumph models Serial #14797-present) This strainer is used to filler particle thru plumbing system. Important part of our spraying systems. Other parts that are sold separately: T466681-2016-Screen 40 M T466683-Gasket Viton T466687-1/4 in Female Top-Poly T466689-Bowl Poly

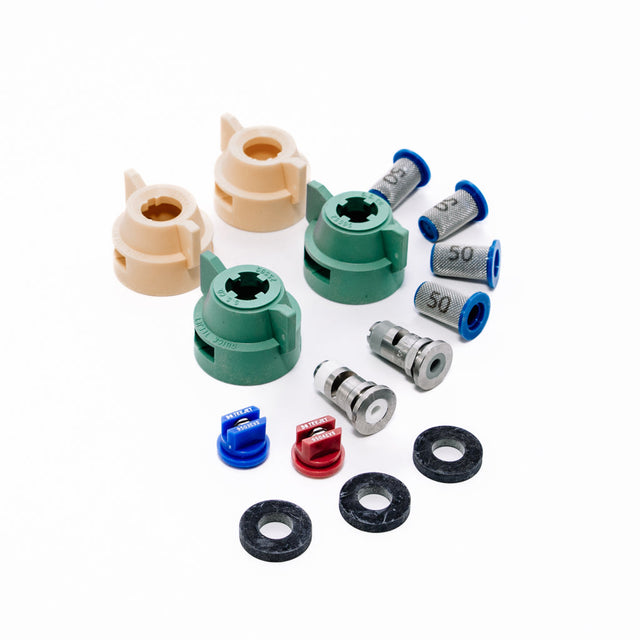

Self-Centering Nozzle Kit Upgrade (Triumph)
(fits all Triumph models) The Self-Centering Nozzle Kit automatically centers the spray swath. It contains all four nozzles, four strainers, four nozzle caps and gaskets. It is standard on all Triumph 2016 and newer models, but can be used to to upgrade Triumph models 2015 and older. The following parts are include in this kit: 2 qty T466691-Cap, Tim 2016-Green 2 qty T466693-Cap, Wide, 2016-Yellow 1 qty T205039-Nozzle, WIDE Green HG 1 qty T205039-Nozzle, WIDE White LG 1 qty T205041-Nozzle, Trim Blue LG 1 qty T205043-Nozzle, Trim Red HG 4 qty R464724-Nozzle Strainer, 50 Mesh
Shaft Block w/ Striker (Triumph)
(Triumph models Serial #14151- present) Shaft Block is installed in between spinner shaft and gearbox. The spinner shaft has the impeller installed and the box moves the shaft to spread granular product from the hopper. Also, this part has a striker finger on the block to strike against the hood to vibrate hood and keep fertilizer from sticking.
B-Cam
Blue cam piece is used on the Triumph model and is located on top of the spinner shaft above the spinner impeller. This piece will make contact with the square Cam & Shaft for the agitator, causing the agitator to oscillate inside the hopper.
30 psi Unloader Valve
(fits all Triumph models) The 30 psi unloader valve is used to widen out the broadcast spray width from 11 ft to 13 ft wide.
Calibrating Gauge
(fits all Triumph models)The Calibrating Gauge is the green staggered Lesco gauge keys with gauge increments 8 through 24. These can be used on Triumph models to set an accurate spread rate.
Triumph Hopper Cable Assembly
(fits all Triumph models) This is the hopper cable for the Triumph. It connects with fertilizer lever on the handlebars and the slide plate located underneath the hopper. This cable will help open and close the spreader hopper
Pulley, Pump Triumph
(fits all Triumph models) Pump Pulley for the Triumph is located on the shaft of the pump and will come with two set screws.
Nozzle Strainer, 50 Mesh
(all Triumph models) This screen is used to filter our small particle. Prevents spray tips from getting clogged. Screen is used with every spray tip and bottle tip.
Spinner Kit, w/ Shaft
(fits all Triumph models) This is a upgrade for Serial #10501-12656. Standard for all other Triumph models.
Lever, Brake/Spray Triumph
(all Triumph models) Brake/Spray Lever is the plastic black levers used on both front and rear brakes, along with the spray lever located on both sides of handlebars. Old part is #T654140.
Gearbox, Heat Shield Triumph 6" (all Triumph models)
(All Triumph models) Used to keep debris and water from entered gearbox top bearing.
Fitting, Elbow 1/4fptX1/4hb Triumph
Elbow fitting connected to nozzle bodies of high gear wide, high gear trim, and low gear trim nozzles. Three (3) of these fittings on machine.
Nozzle Cap Gasket
(all Triumph models) The Nozzle Cap Gasket is used on all PermaGreen® models. This item is located inside the nozzle cap that holds the nozzles on the nozzle body. The Nozzle Cap Gasket will help prevent liquid for leaking out of the nozzle caps.
Nozzle Body, 8 PSI
(all Triumph models) This part is used on all of machines. Other parts that are sold separately: 1 qty R466444-Pressure Cap, 8 PSI 1 qty R466448-Diaphragm, Standard 1 qty R466449-Diaphragm, Viton
Shaker Striker
(Triumph models Serial #14151-present) Used on block set T651969 to strike plate on hood.
Clamp, Boom 1" Triumph (Qty:1)
(fits all Triumph models) The 1" Boom Clamp helps hold the Spray Shield to the front bumper bar of the Triumph. Four (4) boom clamps are needed per spray shield. Spray Shield kits including this part is T000317-SprayShield Kit.
Label, Spread Rate Adjustment
(fits 2015- present Triumph Sulky Hubs) This label is used on machine ranging from 2015 to present. Label identifies the rate the machine can be adjusted to spread granular fertilizer.
Shaft Block NO Striker
(fits Triumph models Serial #10501-14150) Shaft Block is installed in between spinner shaft and gearbox. The spinner shaft has the impeller installed and the box moves the shaft to spread granular product from the hopper.
Stainless Steel Spray Shield Upgrade Kit (Triumph)
(all Triumph models) Spray Shield Upgrade kit can be used on both Triumph. Shield kit is used to minimize spray liquid from spraying on hood. This Upgrade is replacing T000315-SprayShield Upgrade Kit. Old kit had plastic shield. This kit has an updated stainless steel shield. This upgrade kit includes the following part number: 2 qty P651660-1/4-20 x 5/8 Screw 2 qty R651216-Lock Nut, 1/4-20 4 qty T454250-Boom Clamp 1" 2 qty T454255-1/4 Mnbt Fitting 2 qty T454260-1/4 Nylon Nut 1 qty T622103-Sprayshield
