Shift Cable Rod End (Triumph)
(fits All Triumph) This part is on Part#T654030-Shift Cable Assembly. Rod end is screwed onto end of shift cable to allow attach to shift arm and lever to shift machine into gear.
Spray Valve Kit Triumph
(fits all Triumph models) This kit is used on all triumphs. Kit includes the following parts: 1) P205010-Spray Valve 2) R452222-Fitting, 1/4 mpt x 3/8 Hose 3) T454245-3/8 mpt x 3/8 hose barb 4) R347042-Wire Tire, Stud 5) R347041-Wire Tire 8 BUV (2) 6) R4841243-Hose Clamp #38 (2) 7) P205020-Spring 3" (not shown in picture) This kit is used to replace spray valve. Kit includes hose fittings, wire tires and hose clamps to completely change out spray valve.
Diaphragm, Standard (Magnum and Triumph all models)
(all Triumph models) (all Magnum models) The diaphragm is used on all PermaGreen® models. The diaphragm is a rubber disk located underneath the 8 psi cap on the nozzle body and the 20 psi and 30 psi pressure caps on the unloader valves. There are five total on every PermaGreen®. Always a good practice to have a few extra on hand.
Deflector Cable (Triumph all models)
The deflector cable controls the deflector used on border passes for all Triumph models.

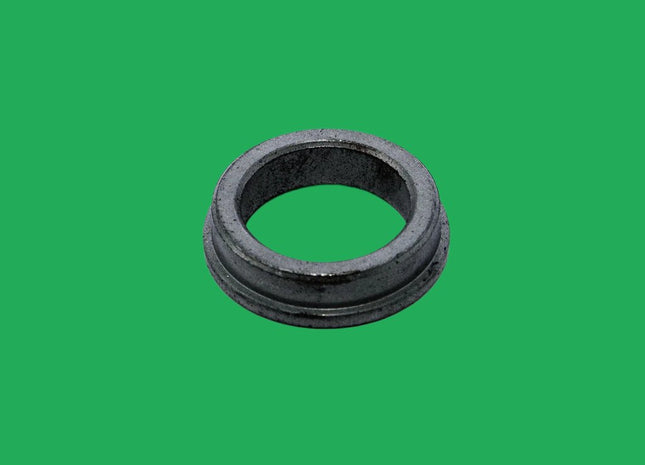

Retainer, Roller Bearing Retainer Rear Triumph 1"
(fits 2012- present Triumph Sulky Hubs) This part is inside of the rear hub assembly on sulkies with 1" sulkies. Part is inside of T654750-1" Hub drum Assembly and T654670-Small 1"Hub Tire Kit. Please note when ordering this part must order (2) of the retainers must be ordered per (1) T654750.01-1" Roller bearing, Rear Triumph 1". This part holds the roller bearings in place on the hub.
Triumph Shift Cable Assembly
(all Triumph models) This is the shift cable for the Triumph. It connects with the shift lever underneath the left handlebar, and the shift arm on the transaxle. It will help control the shifting of gears on the machine. You will receive the shift cable and one plastic rod end.

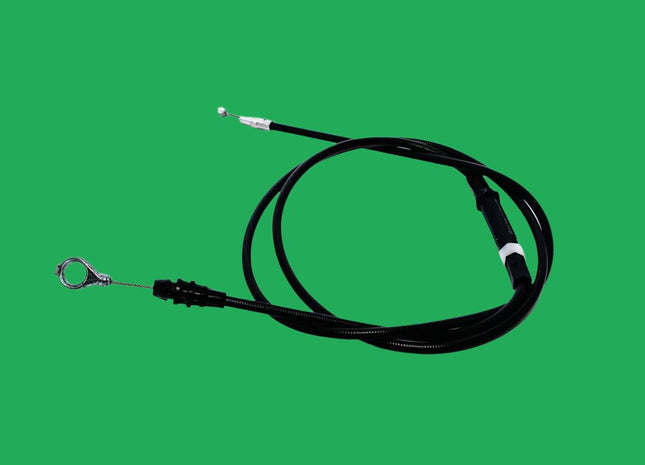

Front Brake Cable #1 (of 2) (all Triumph models)
(fits all Triumph models) Front brake cable #1 (of 2) starts at the front brake lever and connects to Front Brake Cable #2 down near the spinner gear box. Front Brake Cable #2 connects to front brake band. (Both cables are needed to complete front brake cable replacement).
Transaxle, Triumph-Kit (UPS Signature Required)
(fits all Triumph models) This kit includes Transaxle with heat shield to protect the transaxle. Dual pulleys and drum hub attach for breaking system. Brake Covers and Tire hubs with lug nuts to attach Rims for easy assembly. Lastly, hardware nuts, bolts, and washers to attached the transaxle with easy schematic instructions to simplify assembly. Listed below is a parts breakdown: Parts pre-assembled on Transaxle: 1-P653601-V-Pulley, A3.5 x 3/4" 1-R651628-3/16 x 1-1/2 Machine Key (assembled with pulley) 1-T654935-Hub Drum Assembly (Check kit T654930 for reference) 2-T651610-1/2" External Retaining Ring (Secure T654935) 2-T651615-1/2" Flat Washer (Secure T654935) 1-T101770-Shift Arm 1-P210110-Bolt, 1/4-28 x 1/2 Hardened Parts attached to transaxle be removed used to mounted on machine 4-U650691-Bolt, 5/16-18 x 3 4-R651214-Lock Nut, 5/16-18 4-651422-Washer 5/16 4-R651482-Lock Washer, 5/16 4-R650122-Bolt, 5/16-18 x 1 2-T650850-Washer Bag/Box Parts to assembly on transaxle: 2-P654725-Hub w/Drum 4-R651404-Lug Nut 1/2 4-T651406-1/2 x 1" Lug Nut 5-P651512-Washer, 1" x 18 ga 2-P651705-E Clip, 1" 2-P651640-Key, 1/4 x 1-1/2 1-P653601-V-Pulley, A3.50 x 3/4" 1-T210111-Transaxle Vent 2-T654283-Black Hub Cap 1" 2-R347041-Wire Tire 8" 2-T101708-Top Brake Cover 2-T654053-Brake Cover Assembly Instructions to assemble on machine

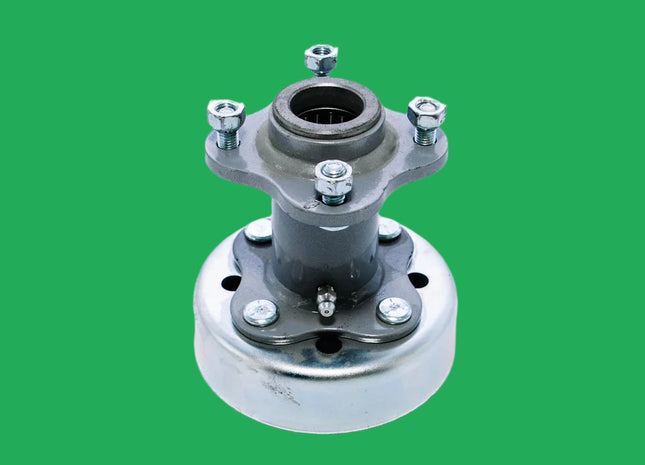

Rear Tire Hub w/ Bearing Triumph 1"
(fits 2012- present Triumph Sulky Hubs) This part is inside of the rear hub assembly on sulkies with 1" sulkies. This part is part of the T654675-Rear Tire, rim and hub kit. Hub also included T654750.01-1' Roller bearing & T654750.02-1" retainer. This hub has the drum attached to brake the rear sulky. Note 2 qty T654750.02-1" retainers hold 1 qty T654750.02 in this hub. Other parts that maybe needed if ordering this part: Parts used to attached tire/Hub to sulky: 1 qty T651605-3/16-1-1/4 Cotter Pin 4 qty P651510-Washer, 1" x 18 ga .048 **Note this is per side. Example if you need both left and right side 2-T651605 and 8-P651512 must be ordered. Braking System for Sulky: 1 qty T654040-Sulky Cable 2 qty R422055-Brake Band 2 qty R651206-Lock Nut, 10-24 2 qty R651450-Fender Washer, 3/16x3/4 4 qty T651733-B-Brakepin-Sheath 2 qty T101700-Brake Holder 2 qty T654525 Brake Band Tension Spring
Front Brake Cable #2 (of 2) Assembly (Triumph)
(fits all Triumph models) This is the Front Brake Cable #2 (of 2) Assembly for the Triumph. You will receive the Front Brake Cable #2, Brake Holder, Brake Pins, and Brake Band. This assembly is located underneath the green hood and will help apply braking pressure to the transaxle.
Triumph 3" Spring (Spray Valve, Deflector, Throttle)
(fits all Magnum models) (fits all Triumph models) 3" Spray Valve Spring is used to help close the main spray valve on the Triumph. Also used on deflector. All Triumph models use this spring for Throttle spring. Magnum models used this spring to pull the main spray valve.
Front Brake Cable #2 (of 2) (all Triumph models)
Front Brake Cable #2 terminates at the front brake band and is the lower section of the front brake system. (NOTE: Both #1 and #2 are needed to perform complete front brake replacement).
