Spinner Gearbox Hood Bearing (Triumph)
This bearing goes over the shaft coming up from the Triumph Spinner Gearbox that comes up through hole in the middle of the green plastic hood piece.

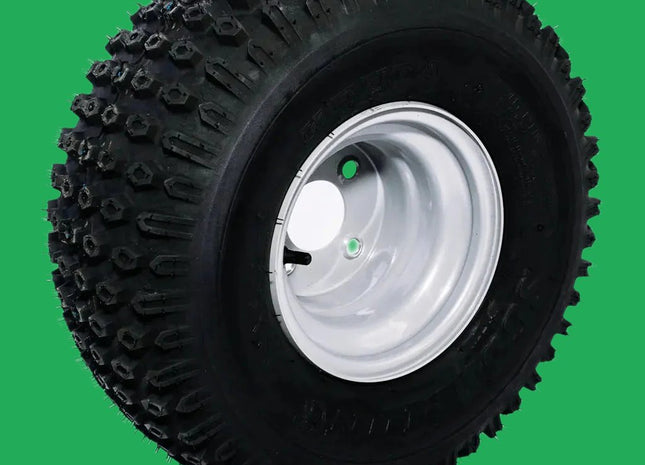

Tire, Front and Rim Triumph/Magnum
(all Magnum Models) (Triumph models) This tire and rim is filled with RV antifreeze mix to counterbalance machine.
Pulley, Flat Idler w/ Bushing Triumph
(all Triumph models) This is the Idler Pulley that is next to the Engine on the Triumph.
Tank Lid Gasket
(fits all Triumph models) The Tank Lid Gasket is used on the Triumph model and is located on the inside of the spray lid that is used to cover the liquid tanks.
3rd Hopper Hole Assembly Cable w/ Metal Lever (Triumph)
(all Triumph models) This 3rd hopper hole cable assembly for the PermaGreen® Triumph will include a metal lever for greater durability, lever housing, gray plastic rate adjuster, and cable. This is available for all Triumph models. The following part number are used in the upgrade: 1 qty T654325-Plain Grip 1 qty T101504-3rd hole Cable Lever 4 qty P651230-5/8 Nylon Washer 1 qty T654220-3rd Hole Cable with plastic lever
Pulley,V-Idler w/ Bushing Triumph (Honda)
(Triumph models with Honda Engines***) ***Important this part is only used on Triumph Machines that have the Honda Engines. This part will not work on machines that have VanGuard (Briggs and Stratton Engine)T653711 is the correct part for that machine. This part is assembled with V-pulley and Bushing.
Self-Centering Nozzle Kit Upgrade (Triumph)
(fits all Triumph models) The Self-Centering Nozzle Kit automatically centers the spray swath. It contains all four nozzles, four strainers, four nozzle caps and gaskets. It is standard on all Triumph 2016 and newer models, but can be used to to upgrade Triumph models 2015 and older. The following parts are include in this kit: 2 qty T466691-Cap, Tim 2016-Green 2 qty T466693-Cap, Wide, 2016-Yellow 1 qty T205039-Nozzle, WIDE Green HG 1 qty T205039-Nozzle, WIDE White LG 1 qty T205041-Nozzle, Trim Blue LG 1 qty T205043-Nozzle, Trim Red HG 4 qty R464724-Nozzle Strainer, 50 Mesh
B-Cam
Blue cam piece is used on the Triumph model and is located on top of the spinner shaft above the spinner impeller. This piece will make contact with the square Cam & Shaft for the agitator, causing the agitator to oscillate inside the hopper.
Pull Starter/Recoil, Triumph (L-SHAPED PINS)
(all Magnum Models) (some Triumph models with Honda Engines***) ***Important when ordering this part to take pull start assembly off of Honda Engine and flip it upright as seen in picture below. Machine sure to engage or pull cord and identify which pins push out. Review VIDEO to identify correct recoil. Honda Engines could have different pins to engage recoil important to identify which pull start to order.
Strainer, Triumph External Assembly
(fits Triumph models Serial #14797-present) This strainer is used to filler particle thru plumbing system. Important part of our spraying systems. Other parts that are sold separately: T466681-2016-Screen 40 M T466683-Gasket Viton T466687-1/4 in Female Top-Poly T466689-Bowl Poly
Shaft Block w/ Striker (Triumph)
(Triumph models Serial #14151- present) Shaft Block is installed in between spinner shaft and gearbox. The spinner shaft has the impeller installed and the box moves the shaft to spread granular product from the hopper. Also, this part has a striker finger on the block to strike against the hood to vibrate hood and keep fertilizer from sticking.
30 psi Unloader Valve
(fits all Triumph models) The 30 psi unloader valve is used to widen out the broadcast spray width from 11 ft to 13 ft wide.
