Transaxle, Triumph-Kit (UPS Signature Required)
(fits all Triumph models) This kit includes Transaxle with heat shield to protect the transaxle. Dual pulleys and drum hub attach for breaking system. Brake Covers and Tire hubs with lug nuts to attach Rims for easy assembly. Lastly, hardware nuts, bolts, and washers to attached the transaxle with easy schematic instructions to simplify assembly. Listed below is a parts breakdown: Parts pre-assembled on Transaxle: 1-P653601-V-Pulley, A3.5 x 3/4" 1-R651628-3/16 x 1-1/2 Machine Key (assembled with pulley) 1-T654935-Hub Drum Assembly (Check kit T654930 for reference) 2-T651610-1/2" External Retaining Ring (Secure T654935) 2-T651615-1/2" Flat Washer (Secure T654935) 1-T101770-Shift Arm 1-P210110-Bolt, 1/4-28 x 1/2 Hardened 4-U650691-Bolt, 5/16-18 x 3 4-R651214-Lock Nut, 5/16-18 4-651422-Washer 5/16 4-R651482-Lock Washer, 5/16 4-R650122-Bolt, 5/16-18 x 1 2-T650850-Washer Bag/Box Parts to assembly on transaxle: 2-P654725-Hub w/Drum 4-R651404-Lug Nut 1/2 4-T651406-1/2 x 1" Lug Nut 5-P651512-Washer, 1" x 18 ga 2-P651705-E Clip, 1" 2-P651640-Key, 1/4 x 1-1/2 1-P653601-V-Pulley, A3.50 x 3/4" 1-T210111-Transaxle Vent 2-T654283-Black Hub Cap 1" 2-R347041-Wire Tire 8" 2-T101708-Top Brake Cover 2-T654053-Brake Cover Assembly Instructions to assemble on machine
Spinner Gearbox w/ Pulley (Triumph)
(fits all Triumph models) This is the gearbox that is used on all Triumphs. This part engages the spinner shaft and impeller to spread granular product. This gearbox kit comes with the parts show below: 1 qty gearbox 1 qty T653710-3"OD 1/2 bore w/2 set screws 4 qty R651206-Lock Nut 1/4-20 1 qty T210165-Gearbox Heat Shield 6" 4 qty P650105-Set Screw 1/4-20 x 1 ss

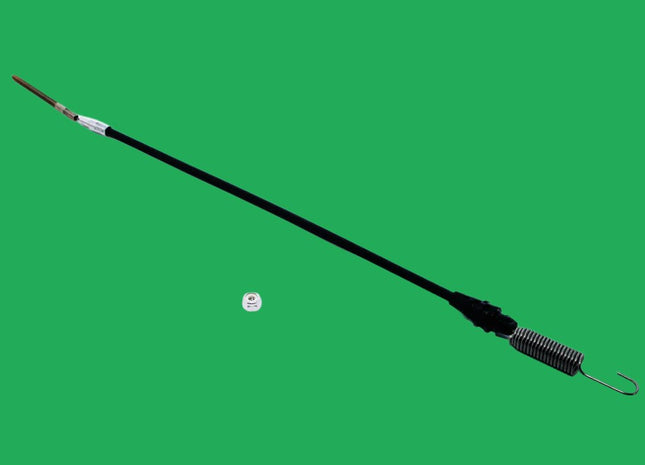

Front Brake Cable #2 (of 2) (all Triumph models)
Front Brake Cable #2 terminates at the front brake band and is the lower section of the front brake system. (NOTE: Both #1 and #2 are needed to perform complete front brake replacement).
Air Filter
(Triumph models serial #10501-19230) (all Magnum models) with Honda Engines
Washer, 1" x 18 ga .048
(fits all Triumph and Magnum models) Used on rear sulky axle of Triumph and front axle of Magnum

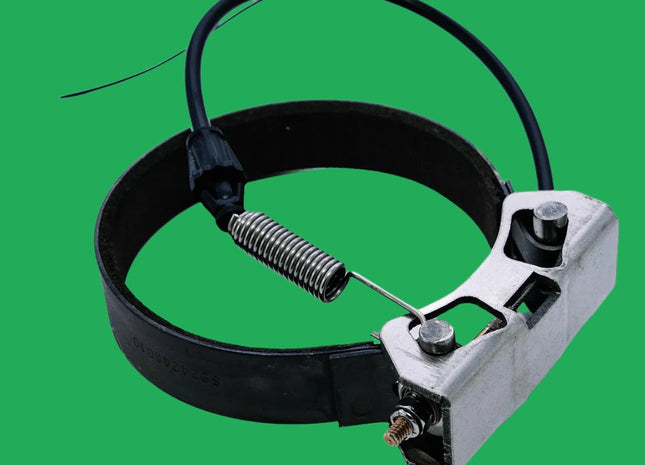

Front Brake Cable #2 (of 2) Assembly (Triumph)
(fits all Triumph models) This is the Front Brake Cable #2 (of 2) Assembly for the Triumph. You will receive the Front Brake Cable #2, Brake Holder, Brake Pins, and Brake Band. This assembly is located underneath the green hood and will help apply braking pressure to the transaxle.
Shift Cable Clamp
(all Triumph models) The Cable Clamp for the Shift Cable is used on all Triumph models. It is located near the bottom of the shift cable before it connects with the shift arm on the transaxle. It helps keep the shift cable secure while shifting and is bolted onto the frame. Needs 2 part #U650102 Needs 2 part#R651206
Lever, Throttle
(fits all Triumph and Magnum models) Located on top right handlebar on the both the Triumph and Magnum models. This lever will pulley back on the throttle cable that is connected to the Triumph and Magnum engine.
Small Tire & Rim Assembly

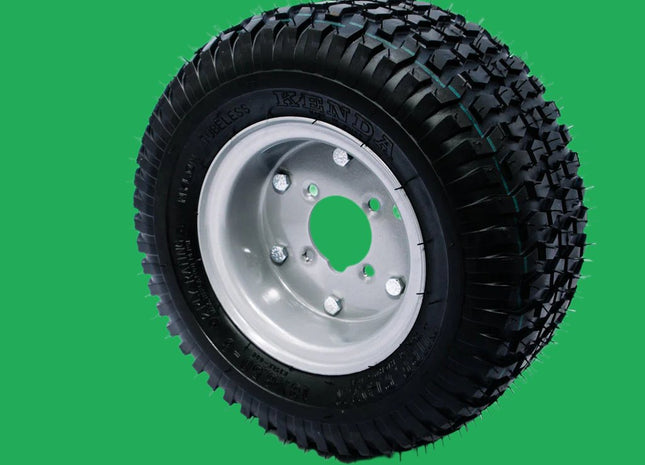

Tire and rim only (rear)
3rd Hopper Hole Assembly Cable w/ Metal Lever (Triumph)
(all Triumph models) This 3rd hopper hole cable assembly for the PermaGreen® Triumph will include a metal lever for greater durability, lever housing, gray plastic rate adjuster, and cable. This is available for all Triumph models. The following part number are used in the upgrade: 1 qty T654325-Plain Grip 1 qty T101504-3rd hole Cable Lever 4 qty P651230-5/8 Nylon Washer 1 qty T654220-3rd Hole Cable with plastic lever
Tank Lid Gasket
(fits all Triumph models) The Tank Lid Gasket is used on the Triumph model and is located on the inside of the spray lid that is used to cover the liquid tanks.
Knob, Fert Rate Kit
(all Triumph models) This knob upgrade kit had a new and improved know that can be locked in place by a nylon locknut. This kit includes the following parts: 1 qty T422937 New, Knob Fert Rate 1 qty T645945 1/4-20 Zinc Locknut 1 qty T645940 1/4-20x1-1/4 Zinc Carriage Bolt Instructions for this kit, give illustrations of how to install new knob.
