Drive Belt (Triumph all models)
.Drive Belt for the PermaGreen® Triumph. This belt goes around the wet clutch pulley and drives the transaxle.

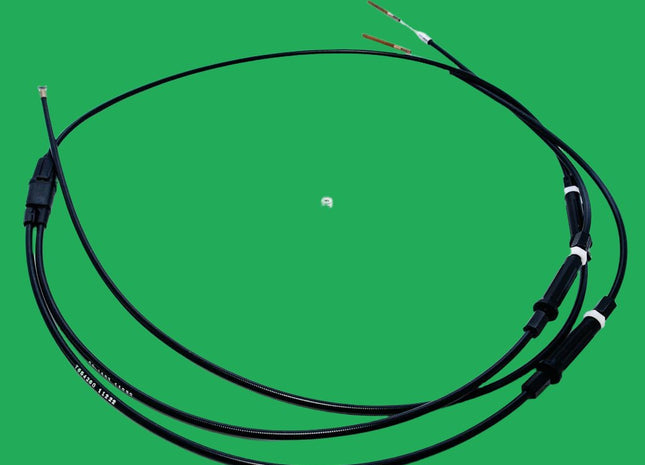

Sulky/Rear Brake Cable (Triumph)
(all Triumph models) This is the sulky/rear brake cable for the Triumph. It connects to the rear brake lever on the left handlebar, then splits into two cables at the front of the sulky that connect with each of the two rear brake bands.
Spinner Platter (Triumph all models) (Magnum models that have been updated)
The Dual-Sided Impeller/Platter is used to spread the granule material as it is being dropped from the bottom of the hopper. This item is used on the Triumph models and can be used on Magnum models that have been converted with Magnum Spinner Kit.

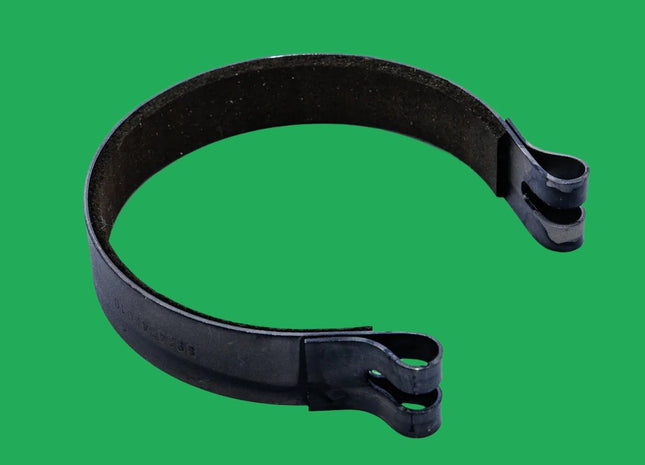

Brake Band (Single)
(all Triumph models) (all Magnum models) Located on rear hubs on the Magnum models, as well as the rear hubs, trans brake drum, and front hubs (5 total) on the Triumph model.
Spinner Belt (Triumph)
(all Triumph models) Spinner Belt for the Triumph. Goes around the spinner gearbox pulley, pump pulley, and gearbox pulley.
Throttle Cable (Triumph)
(all Triumph models) This is the throttle cable for the Triumph. It connects with the throttle lever on the right handlebar and the control lever on top of the engine.
Roller Bearing, Rear Triumph 1"
(fits 2012- present Triumph Sulky Hubs) This part is inside of the rear hub assembly on sulkies with 1" sulkies. Part is inside of T654750-1" Hub drum Assembly and T654670-Small 1"Hub Tire Kit. Please note when ordering this part (2) T654750.02-1" Retainer should also be ordered per Roller bearing that is ordered. Retainers hold the roller bearing in place in hub.
Hopper Cover (All Triumph models)
(fits all Triumph models) Hopper Cover goes over the hopper of all Triumph models. This cover helps to keep granular material in the hopper while in operation.
Spring, Idler Kit Triumph
(fits All Triumph Engine Plate) This kit is used to replace Idler spring on Motor plate. T651945-Brass S Hook w/bend is bolted to the motor plate. This spring creates tension on the Idler pulley. Used with both Honda and Vanguard Motors.
Pump Assembly
(fits all Triumph models) This pump is used on all Triumphs. Assembly comes with the following parts: 1 qty Pump 2 qty R651206-10x24 lock nut 1 qty R651450-3/16 Fender washer The following parts could be order along with this part: P442065-Elbow Fitting (This is the elbow that is the connecting part to the pump in plumbing assemblies) P442059-Blue Retaining Clip (This part is the clip that pushes holds the elbow fitting onto the pump. Locks Elbow in place.)
Spray Cable (Triumph)
(all Triumph models) This is the spray cable for the Triumph. It connects to the spray lever on the left handlebar and the main spray valve located under the top green panel.
Spray Valve Kit Triumph
(fits all Triumph models) This kit is used on all triumphs. Kit includes the following parts: 1) P205010-Spray Valve 2) R452222-Fitting, 1/4 mpt x 3/8 Hose 3) T454245-3/8 mpt x 3/8 hose barb 4) R347042-Wire Tire, Stud 5) R347041-Wire Tire 8 BUV (2) 6) R4841243-Hose Clamp #38 (2) 7) P205020-Spring 3" (not shown in picture) This kit is used to replace spray valve. Kit includes hose fittings, wire tires and hose clamps to completely change out spray valve.
