Gasket, Viton 2016-Used in T466690
(fits Triumph models Serial #14797-present) This part is a gasket that is in part #T466690-1/4" FPT Poly Strainer Assembly. Seals the bowl and Top of Strainer assembly to ensure particle do not pass thru plumbing system.
Pressure Cap, 8 PSI
(all Triumph models) (all Magnum models)
Carburetor, Honda *STOP* READ DESCRIPTION
THIS CARB IS USED ONLY FOR TRIUMPH A1A Engine serial numbers that begin with GCAJK THIS FITS THE GCAJK SERIES

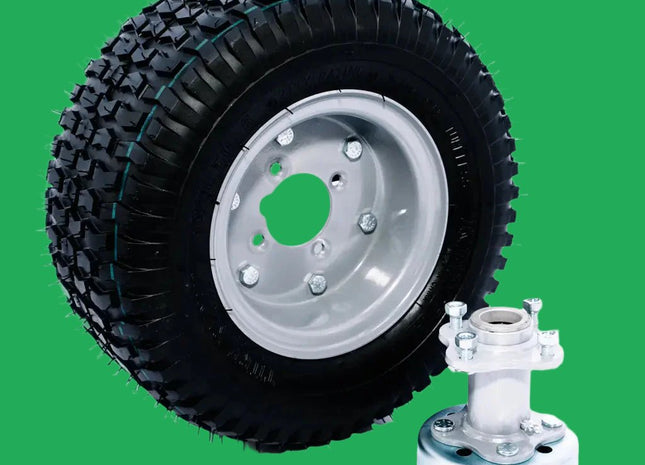

Rear Tire, Rim and 1" Hub (Triumph)
(fits 2012- present Triumph Sulky Hubs) This part is the tire and hub assembly. Tires are filled and Include the hub assemblies. Hubs are also available to purchase separately complete part #T654750-1" Hub assembly. Included in the T654750 is 1 qty T654750.01-1" Roller bearing & 2 qty T654750.02-1" Retainer. Other parts that maybe needed if ordering this part: Parts used to attach tire/Hub to sulky: 1 qty T651605-3/16-1-1/4 Cotter Pin 4 qty P651510-Washer, 1" x 18 ga .048 **Note this is per side. Example if you need both left and right side 2-T651605 and 8-P651512 must be ordered. Braking System for Sulky: 1 qty T654040-Sulky Cable 2 qty R422055-Brake Band 2 qty R651206-Lock Nut, 10-24 2 qty R651450-Fender Washer, 3/16x3/4 4 qty T651733-B-Brakepin-Sheath 2 qty T101700-Brake Holder 2 qty T654525 Brake Band Tension Spring
PP- 1/4mpt elbow 1/4fpt street L
(fits Triumph serial # 17000 - Present) This part is a part of the Suction Strainer part of the plumbing system. The female end of the elbow is assembled on the strainer assembly. The male end of the elbow is assembled to a 1/4" pipe nipple. Then, the nipple is assembled to the ball valve with yellow lever.

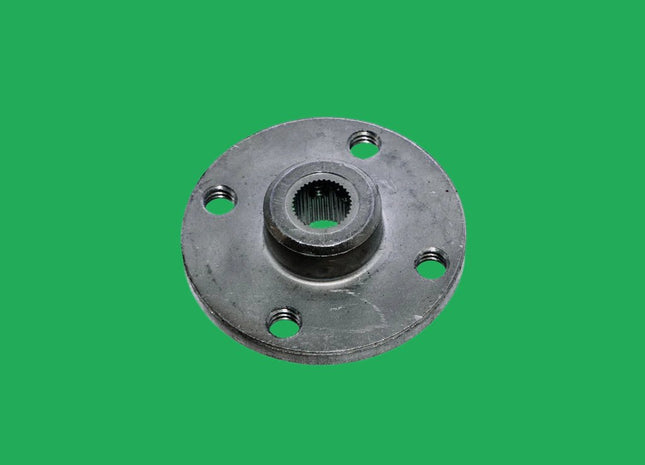

Front Brake Hub (all Triumph models)
(all Triumph models) Front Brake Hub is located on the transaxle and is part of the transaxle drum assembly. This hub is designed to stop machine at the transaxle. Sold Separately: (2) set screw (T645890). Set screw is screwed into the shaft on the transaxle to secure the hub onto transaxle. This hub is included in the following kits: 1) T654930-Transaxle Drum Hub Kit 2) T210303-Triumph Transaxle Kit
Rod End, Hardened Female
(all Triumph models) (all Magnum models) This part is located between the sulky and frame. On triumph this part is attached to a male rod end (T652663) is a part of the articulation of the sulky. This part is a hardened rod end. Replaces old part #R652462.
Clip, Push on Retaining 1/2 Triumph
(fits all Triumph models) This push on retainer is located on the left hand side of the bottom of the fertilizer lever. It helps hold the fertilizer lever and deflector lever securely onto the handlebar housing.
