Hood, Striker Bracket
(fits Triumph models Serial #14151-present) This bracket is on the hood of the Triumph.
Rate Adjustment Upgrade KIT
(fits Triumph Model old A1A-B1B T000801 2010-2014 Serial #10501-14150) The Rate Adjustment Assembly is located underneath the hopper, next to the shut-off plate. This assembly has a knob that when tightened lock the location of the shut-off plate to allow the operate to clear out the holes and return to the original spread opening. This kit includes the following parts: Assembly- 1 qty T422937-Knob Fert Rate 2 qty 651422-Washer 5/16 ss 1 qty T645270-1/4-20x3/8 Socket Head Screw 1 qty T645275-1/4-20x1-1/2 Carriage Bolt ss 1 qty T645280-1/4-20x5/8 Round Head Screw ss 3 qty R651216-Lock Nut, 1/4-20 KIT- 1 qty 710116-Drill Bit 1/4 3 qty R651216-Lock Nut 1/4-20 2 qty T650920-1/4-20 x 7/8 Screw 1 qty T650925-1/4-20 x 1/2 Button Head Socket Screw 1 qty T000140-Rat Adjustment Label 1 qty T651215-10/32 Coupling Nut
Rod End, Hardened Male
(all Triumph models) (all Magnum models) This part is located between the sulky and frame. On triumph this part is attached to a female rod end (T652662) is a part of the articulation of the sulky. This rod end is a hardened rod end. Part replaces old part #R652672.
FEMALE TOP-POLY
(fits Triumph models Serial #14797 to present) This part is one of the replacement parts in T466690-1/4" FPT Poly Strainer Assembly. This top part of this assembly to keep particle from flowing thru plumbing system.
Clamp, Shut Off Plate
(fits all Magnum models) (fits all Triumph models) This clamp holes third hole cable to the shutoff plate.
2017-Smartsteer Upgrade KIT

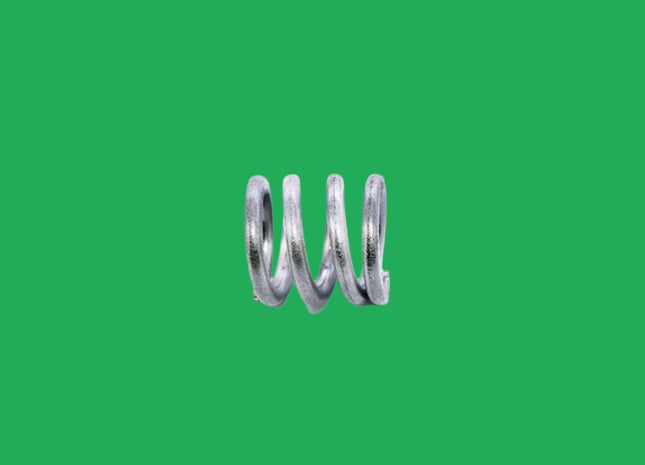

(fits Triumph serial # 10501 - 15499) This kit changes the old snubber ring. Spring are used in the place of the foamy snubber rings. Need to change out hardware on handlebars to create easier steering. This kit include the following part numbers: 2 qty T654544-Steering Springs 4 qty P651203-3/8x1-1/4 Fender Washer 2 qty R650738-Bolt, 3/8-16 x 1-3/4 2 qty P645203-Lock Nut, 3/8-16
Snubber Ring
fits Triumph serial #10501-14150 Snubber Rings are black rubber snubbers located where the handlebars meet the differential housing and cushion the movement of the handlebars
Washer, Nylon Shoulder #8
(fits all Magnum models)(fits all Triumph models) This part is assembled on the shut-off plate in the hopper.
