Upgrade Kits

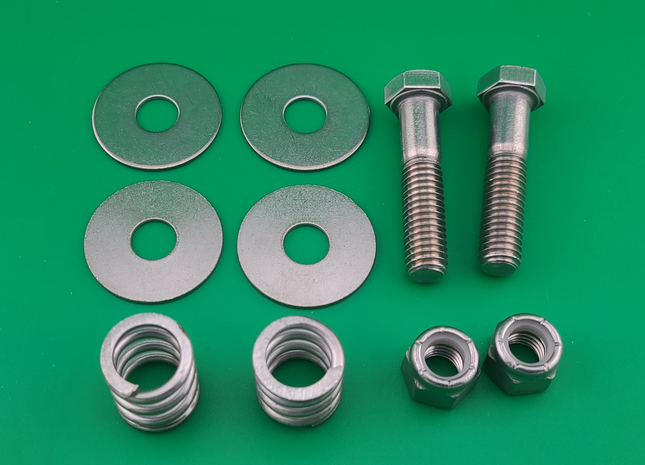

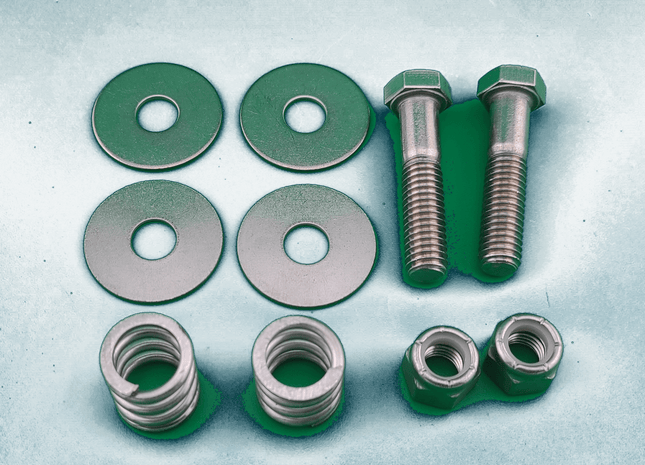

2017-Smartsteer Upgrade KIT
(fits Triumph serial # 10501 - 15499) This kit changes the old snubber ring. Spring are used in the place of the foamy snubber rings. Need to change out hardware on handlebars to create easier steering. This kit include the following part numbers: 2 qty T654544-Steering Springs 4 qty P651203-3/8x1-1/4 Fender Washer 2 qty R650738-Bolt, 3/8-16 x 1-3/4 2 qty P645203-Lock Nut, 3/8-16

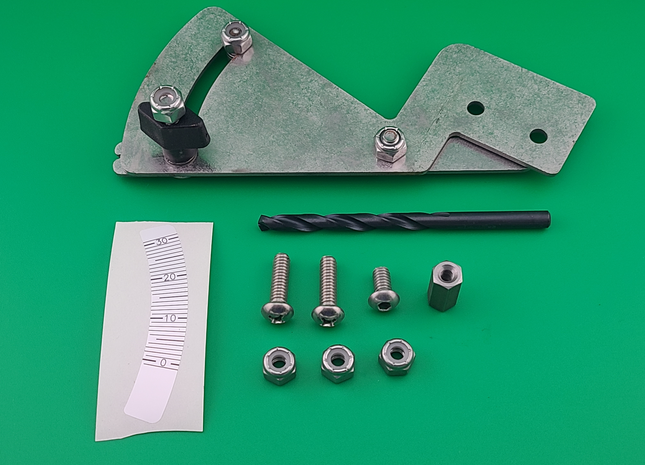

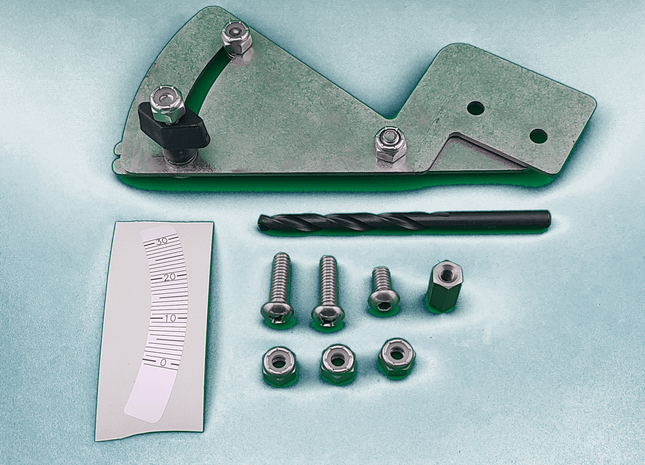

Rate Adjustment Upgrade KIT
(fits Triumph Model old A1A-B1B T000801 2010-2014 Serial #10501-14150) The Rate Adjustment Assembly is located underneath the hopper, next to the shut-off plate. This assembly has a knob that when tightened lock the location of the shut-off plate to allow the operate to clear out the holes and return to the original spread opening. This kit includes the following parts: Assembly- 1 qty T422937-Knob Fert Rate 2 qty 651422-Washer 5/16 ss 1 qty T645270-1/4-20x3/8 Socket Head Screw 1 qty T645275-1/4-20x1-1/2 Carriage Bolt ss 1 qty T645280-1/4-20x5/8 Round Head Screw ss 3 qty R651216-Lock Nut, 1/4-20 KIT- 1 qty 710116-Drill Bit 1/4 3 qty R651216-Lock Nut 1/4-20 2 qty T650920-1/4-20 x 7/8 Screw 1 qty T650925-1/4-20 x 1/2 Button Head Socket Screw 1 qty T000140-Rat Adjustment Label 1 qty T651215-10/32 Coupling Nut

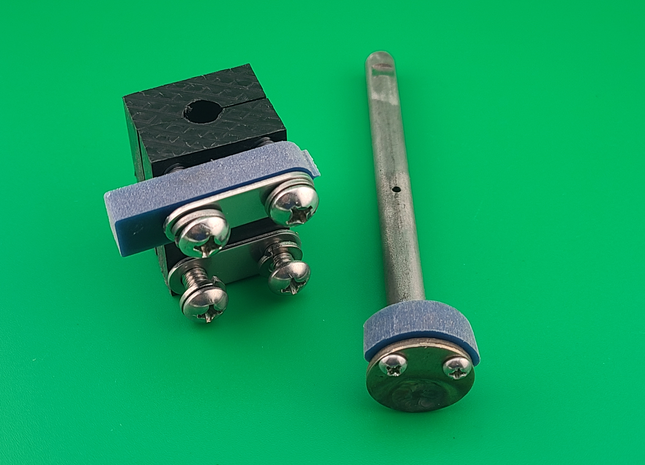

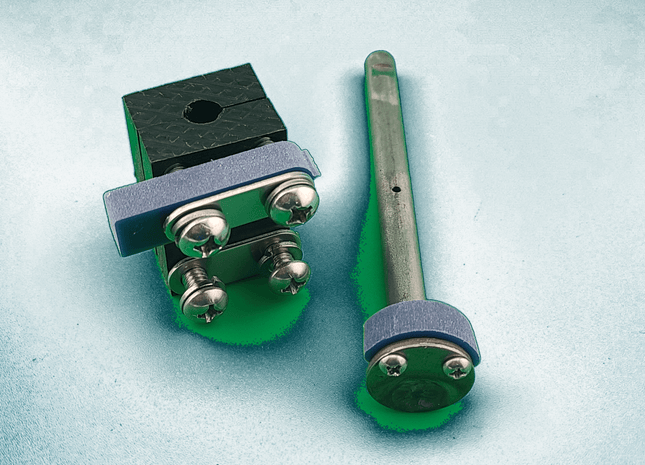

Agitator Block & Shaft Kit
(All Triumph Models) This kit is to replace the Block and Spinner shaft. This kit has the following part number: 1 qty T651969-Shaft Block with Striker 1 qty T422310-B-Spinner Shaft Complete Similar kits to consider are: T000685-Agitator Shaft + PermaGreen® Kit T000695-Agitator Upgrade Kit Complete T000697-Universal Agitator Upgrade KIT w/Cam
Super Duty Shaft Block Assembly
Super Duty Block set is the last block set you will ever order. Block connects the Spinner shaft to the gearbox. This brass block has a striker to vibrate the hood. This keeps fertilizer from building up on the hood. Best Block you will ever own. Part included on this assembly 2 qty P645240-1/4-20x1 Bolt 4 qty R651480-Lock Washer 1/4 2 qty T645845-1/4-20 x 1/4-Cone Point set screw 2 qty T645243-1/4-20 x 1-1/2 bolt 1 qty T651937-Shaker Striker 1 qty T651936-Back-up Block Plate

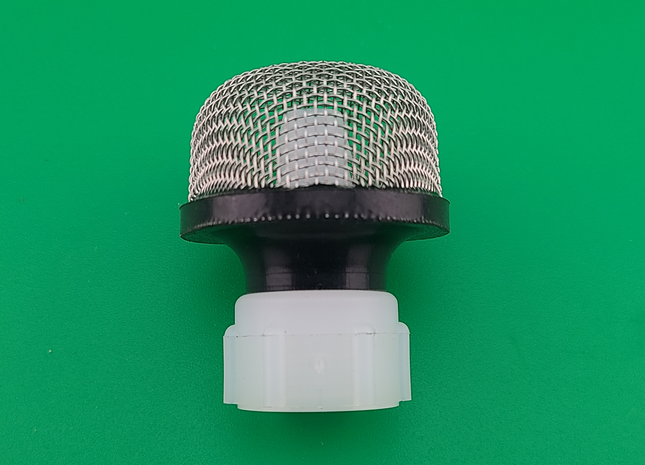

2019-In Tank Strainer Asby
(fits all Triumph models) This upgrade assembly strains material to keep from clogging the spray system. Must order one for each tank. Sold separately. Installed inside tank to strain materials. The following parts are included in this assembly: 1 qty R467010 Nozzle Cap 1 qty T454205 3/8 Shank 1 qty T451094 1/4 FPT Suction Line Strainer 20 Mesh Must order (2) to use in left and right tanks.
Hopper Cvr Hold Down Kit
(fits Serial #14151 to present Triumph models) This kit includes are the hardware to secure the hopper cover to the hopper. The following part number are include in this kit: 6 qty T650883 5/16 Spacer 6 qty T645290 BLACK #10 Nylon Countersunk Washer 6 qty T650405 10-24 x 1-1/8 Flat Screw 6 qty T651217 10-24 Cap Nut-off White
SlidePlate Tension UpGrade KIT
(all Triumph models) This kit provides hardware to mount Slide Plate located underneath the hopper. This kit includes the following parts: 2 qty P422925 Screw, Slide Plate 2 qty P645220 Counter Sink Washer, #10 2 qty P645225 Nylon Washer, #10 2 qty P645230 Urethane Washer, #10 This kit is only to mount Slide Plate. More hardware is available to mount other components to underneath hopper. Please check you parts manual for other part numbers.

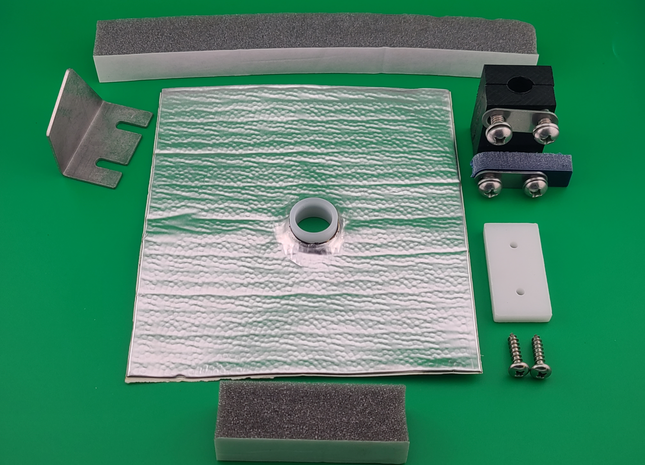

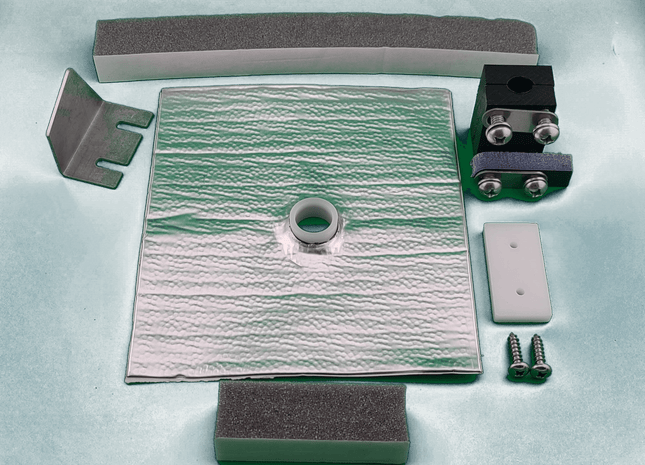

2015-Hood Shaker Kit
Hood Shaker fits all Triumph Machines. This upgrade kit helps to vibrate fertilizer off of the hood. Spreading most of the fertilizer instead of collecting on the hood. Block has a finger that strikes a metal plate, which vibrates hood continuously. Hood Shakers were first assembled on machines in 2015.(Starting with C1C-2015 Triumph) If you have A1A and B1B Triumphs build between 2010 to 2014 buy this upgrade kit today. This was not a standard kit during those years. If you need to replace existing parts, this kit should have everything you need to replace worn parts.
Squeeze N' Spray Bottle Cap with gasket KIT
(all Triumph models) Cap and gasket for the Squeeze N' Spray Bottle. This cap and gasket screws into the top opening of the bottle of the Squeeze N' Spray. Bottle is used to spot spray areas that are difficult to access with machine or small areas. The full assembly part number for the Squeeze N' Spray Bottle is R372034.

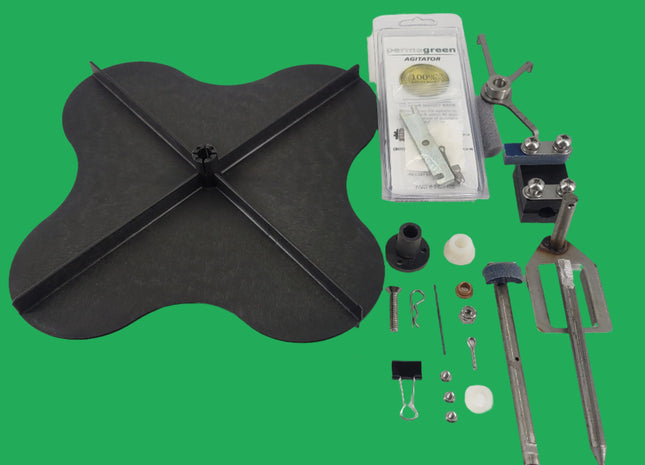

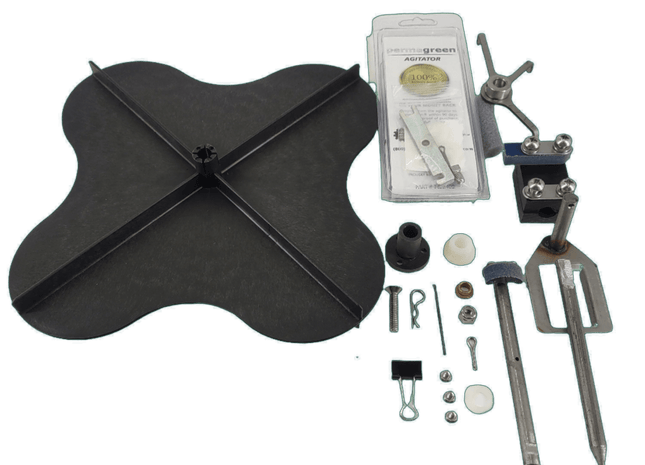

Oscillating Agitator Kit-2010-11 A1A Machine-Serial #10501-12656
Oscillating Agitator kit is for 2010-2011 Triumph Machines. Serial #10501-12656. This upgrade kit brings the hopper up to the current standard. Kit includes step by step instructions and all parts to completed the upgrade. The main parts* that are included in this kit are the following: 1 qty T422100-Straight Fin Spinner Platter 1 qty T100103-Permagreen Agitator Cam & Shaft 1 qty T422400-Permagreen Agitator Kit-Universal agitator fits all PermaGreen® machines and Lesco push spreaders. 1 qty T651969-Shaft Block with Striker 1 qty T422310 B-Spinner Shaft Complete 1 qty T101615-Hopper Guide Tool 1 qty T651925-Agitator Bearing 1 qty T645905-Hopper Bearing *Please note more parts are included, but main parts are listed above.
2019-3rd Hole Cable Handle Upgrade KIT
(all Triumph models) This upgrade kit includes a steel handle and grip to replace plastic handle. This kit includes the following part number: 1 qty T101504-3rd Hole Cable Lever 1 qty T645325 Plain Grip This kit can be used on the following cables: T654056-3rd Hole Cable Assembly T654220-3rd Hole Cable Triumph

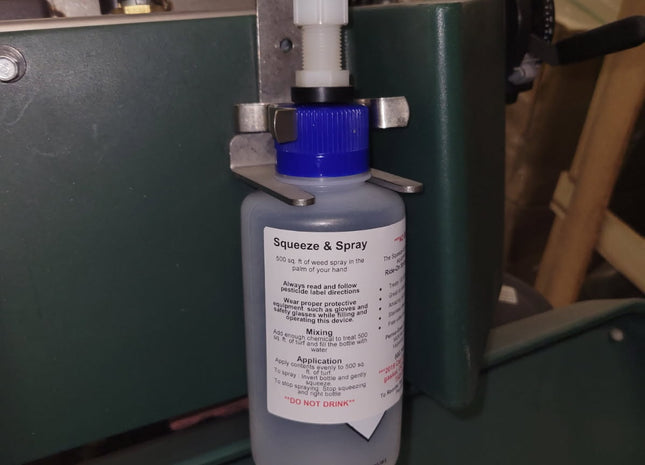

New Bottle Brkt with Bottle KIT
(all Triumph models) Upgrade kit is used on all Triumph. Kit includes Squeeze and Spray bottle Assembly and all the mounting kit. This kit includes the following part: 1 qty R372034 Squeeze & Spray Bottle Assembly Resale parts for Squeeze & Spray: 1 qty R467010-Nozzle Cap 1 qty R464724-Nozzle Spray, 50 Mesh 1 qty Plastic-Green Tip 1 qty 372037-1/8 TT Brass Fitting 1 qty Gasket for Squeeze N Spray Bottle Below parts are all in part #373020-New Bottle Bracket Kit 1 qty T101820 S & S Bottle Holder 1 qty T101785 Squeeze & Spray-Holder 2 qty R650400-Screw, 10-24x3/4 2 qty R651206-Lock Nut, 10-24 1 qty P645103-Screw, #14 w/Seal Washer 3/4 4 qty U422897-Push Rivets Hopper Squeeze N Spray Bottles are use on all Perma Green Supreme Inc. Machine. Great for spot spraying areas challenging to reach from machine.
