Wheels/Brakes
Transaxle Front Brake Hub Kit (Triumph)

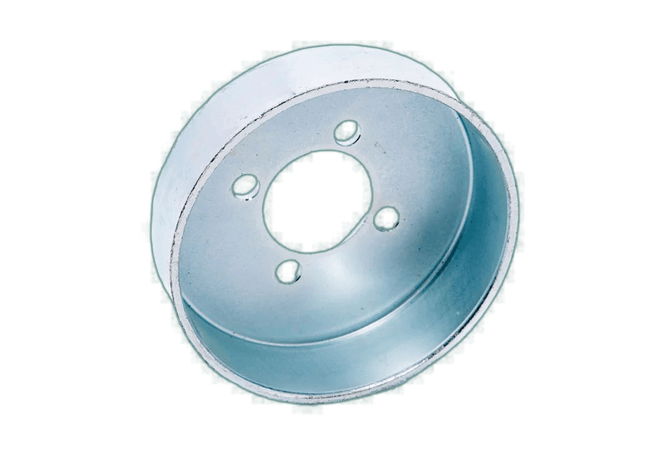

(all Triumph models) Front Brake Hub is located on the transaxle. This hub assembly has a drum assembled to stop machine at the transaxle. This kit includes loctite, retaining rings, and washer that hold hub assembly to the transaxle. Also, (2) set screws on the hub. The following part numbers are included in this kit: Assembly- 1 qty T654910-Front Brake Hub 1 qty T654915-Brake Drum 4 qty R651482-Lock Washer, 5/16 4 qty T645880-5/16-18 x 5/8 ss bolt 2 qty T645890-10-24x1/4 Set Screw KIT- 2 qty T651610-1/4 External Retaining Ring 1 qty T651615-1/4 Flat Washer 1 qty P442053-Loctite-Retaining Compound
Lever, Brake/Spray Triumph
(all Triumph models) Brake/Spray Lever is the plastic black levers used on both front and rear brakes, along with the spray lever located on both sides of handlebars. Old part is #T654140.

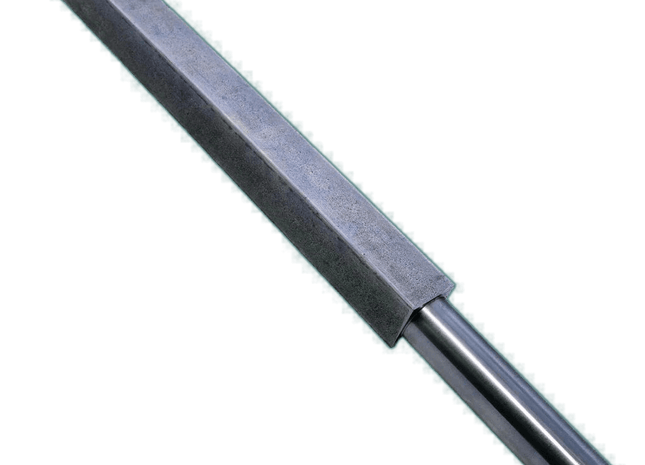

Sulky Axle (Triumph) 2015 AND NEWER
(fits Triumph models Serial #14151-present) Rear axle for the Perma Green Triumph used on Triumph model 2015 and newer. These Triumphs require two of these rear axles per sulky. Contact a 1" diameter shaft

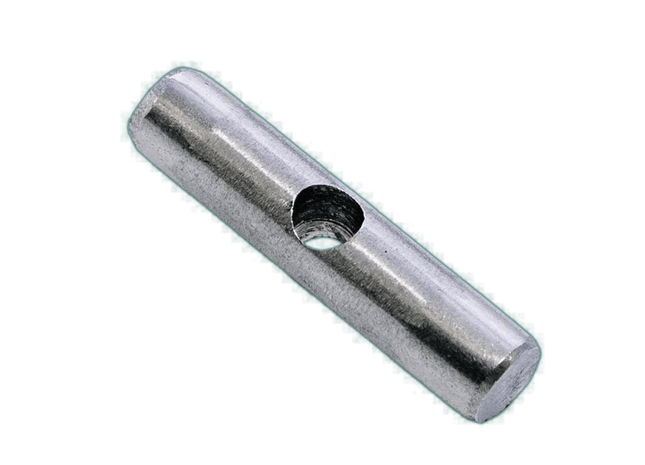

Brakepin-Rod
(all Triumph models) Brakepins are used on the Triumph models and help hold the brake bands onto the brake holders. (this also replaces T101740)

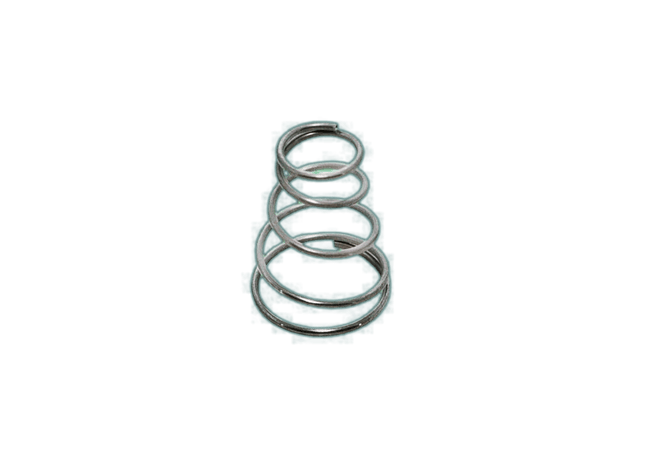

Brake Band Tension Spring
(all Triumph models) Brake Band Tension Spring is located on the end of the brake cable where the cable goes through the brake holder, brake pins, and top of the brake band. Brake Band Tension Spring allows for smooth control braking action on brake bands.

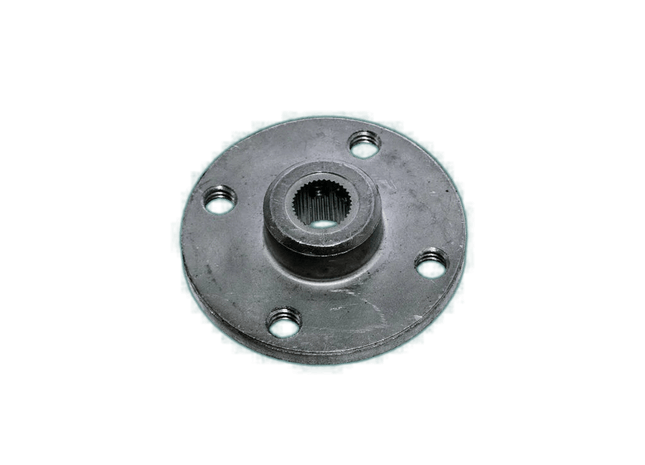

Front Brake Hub (all Triumph models)
(all Triumph models) Front Brake Hub is located on the transaxle and is part of the transaxle drum assembly. This hub is designed to stop machine at the transaxle. Sold Separately: (2) set screw (T645890). Set screw is screwed into the shaft on the transaxle to secure the hub onto transaxle. This hub is included in the following kits: 1) T654930-Transaxle Drum Hub Kit 2) T210303-Triumph Transaxle Kit

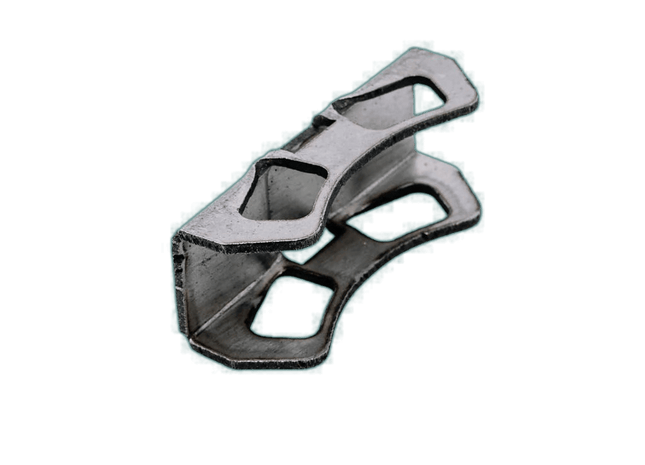

Form Brake Holder (all Triumph models)
(fits all Triumph models) The Form Brake Holder is located on top of every brake band and helps keep the brake pins, brake cable, and brake band together so they properly engage when brakes are applied.
2015-Top Brake Cover
(fits Triumph serial # 14151 - Present)

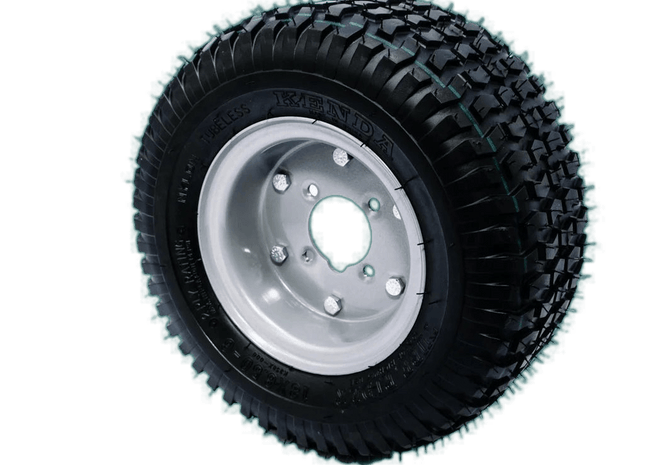

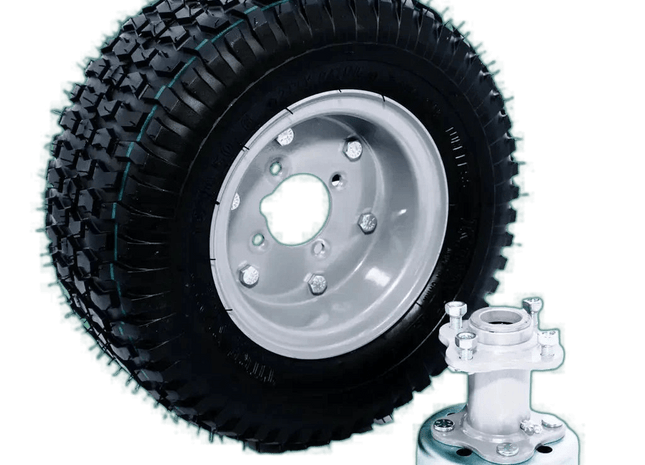

Rear Tire, Rim and 1" Hub (Triumph)
(fits 2012- present Triumph Sulky Hubs) This part is the tire and hub assembly. Tires are filled and Include the hub assemblies. Hubs are also available to purchase separately complete part #T654750-1" Hub assembly. Included in the T654750 is 1 qty T654750.01-1" Roller bearing & 2 qty T654750.02-1" Retainer. Other parts that maybe needed if ordering this part: Parts used to attach tire/Hub to sulky: 1 qty T651605-3/16-1-1/4 Cotter Pin 4 qty P651510-Washer, 1" x 18 ga .048 **Note this is per side. Example if you need both left and right side 2-T651605 and 8-P651512 must be ordered. Braking System for Sulky: 1 qty T654040-Sulky Cable 2 qty R422055-Brake Band 2 qty R651206-Lock Nut, 10-24 2 qty R651450-Fender Washer, 3/16x3/4 4 qty T651733-B-Brakepin-Sheath 2 qty T101700-Brake Holder 2 qty T654525 Brake Band Tension Spring
Roller Bearing, Rear Tire 3/4"
Fits All Magnum Models and A1A Triumph
